Bentonite Rheology Additive
Bentonite Rheology Additive : Adding organophilic clay bentonite to oilfield drilling mud serves the primary purpose of enhancing the load-bearing capacity of oil-based mud systems and effectively removing cuttings from the wellbore to maintain borehole cleanliness.
Simultaneously, our series of organobentonite clay significantly increases yield point and gel strength, demonstrating rapid dispersion particularly in diesel-based systems as well as mineral oil and synthetic oil systems.
Typical dosage ranges from 5.7 to 28.5 kg/m³.
Optimal concentration requires testing and adjustment within specific mud formulations.
Bentonite Rheology Additive
Bentonite Rheology Additive

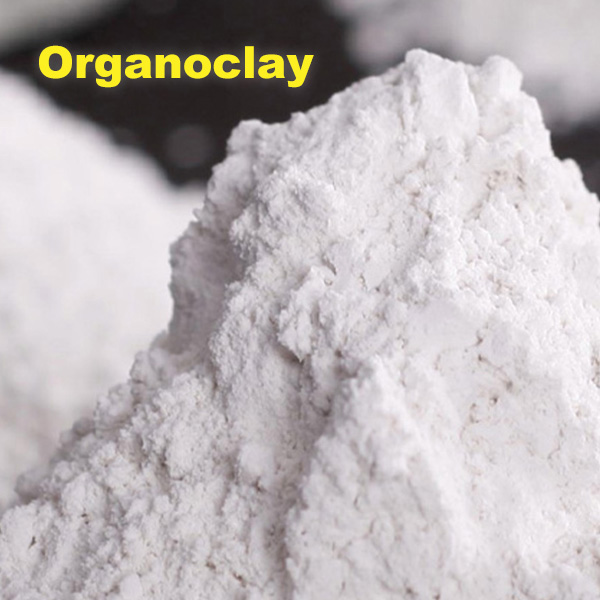

As an organic derivative of bentonite, our product organoclay rheological additive appears as a white or light-colored powder with moisture content typically below 4%. In a 3% diesel system, its viscosity at 600 rpm is greater than or equal to 35 cP. When incorporated into oil-in-water drilling fluids, our organic bentonite effectively enhances yield point and gel strength.
Regarding specific dosage, we recommend determining the optimal amount through experimentation within your formulation, as rheological properties vary across different base oil types.
Advantage.
- Camp-Shinning produces and supplies organic bentonite with the key features of environmental friendliness and consistent batch-to-batch slurry performance.
- Bentonite mud additives enhance slurry yield post-use and exhibit exceptional dispersibility.
- We highly recommend its application in all oil-based and water-in-oil systems.
- No additional activators are required for dispersion, while it boosts yield point and enables rapid addition at the wellsite.
- Notably, it enhances Brookfield viscosity.
We suggest using our Oil and Gas Drilling Bentonite organic bentonite clay at a typical dosage range of 5.7 to 28.5 kilograms per cubic meter. The precise concentration requires experimental determination to achieve the best results.
AV (mPa·s) | PV (mPa·s) | YP (Pa) | Gel Pa | Ф6/Ф3 | FLHTHP (ml) | Es (V) | ||
CP-EZ | Roll Before | 33 | 29 | 4 | 3/3.5 | 4/3 | 970 | |
Roll After | 36.5 | 32 | 4.5 | 2.5/3.5 | 4/3 | 2.0 | 900 |
Please do not hesitate to contact us if you need slurry bentonite.
