Organoclay OBM Viscosifier for all oil based drilling fluids

Organoclay OBM Viscosifier for all oil based drilling fluids
Organoclay OBM Viscosifier is a economy rheological additive for diesel-based drilling fluids to increase the carrying capacity and hole cleaning capabilities. Organoclay Viscosifiers CP-160 is an easy dispersing Organoclay rheological additive that exhibits high performance efficiency in diesel, low aromatic mineral oil, modified vegetable oil and synthetic base fluid formulation.

mailEmail: [email protected]

Product details

Organoclay OBM Viscosifier for all oil based drilling fluids

Organoclay OBM Viscosifier is a economy rheological additive for diesel-based drilling fluids to increase the carrying capacity and hole cleaning capabilities. Organoclay Viscosifiers CP-160 is an easy dispersing Organoclay rheological additive that exhibits high performance efficiency in diesel, low aromatic mineral oil, modified vegetable oil and synthetic base fluid formulation.

Properties

Composition                      Organically modified bentonite clay

Appearance                       Off white to tan finely divided powder,

Moisture content (105℃,2hr)         ≤3.5%

Specific Gravity                    1.7

Bulk density                       0.40~0.60g/cm³

Advantages

Effectively suspends weighting materials and other solids

Maintains suspension over a wide temperature range

Eliminates need for chemical activators

Is easy to disperse and rapid yielding

Suspends weighting materials and other solids

Maintains suspension over a wide temperature range

Application

Organoclay Bentonite CP-160 is a self-activating gallant offering rapid yield development, high gel strengths, and increased efficiency. The unique properties of Organoclay Viscosifiers CP-160 are especially valuable in low-shear mud plant operations and during completion fluid manufacture at the well site

Base oil:

Diesel Oils

Mineral Oils

Synthetic Oil

Linear and isomerized Alpha Olefins

Modified vegetable oil

Viscosifying drilling Fluids:

All oil based drilling fluids

Invert emulsion fluids

Workover fluids

Fracture fluids

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.



Package

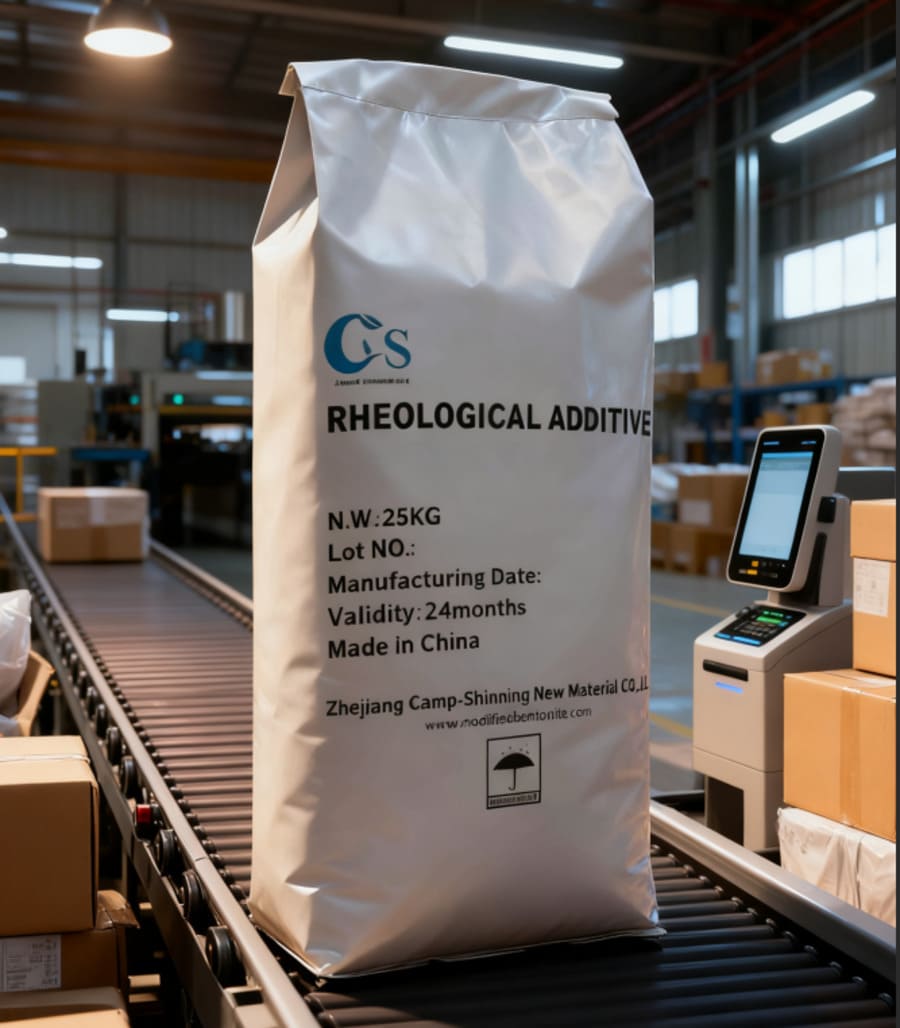

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

Storage

Organo bentonite CP-160 Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control.  Organoclay Viscosifiers are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.
