Organoclay Supplier And Manufacturer

Camp Shinning is a professional global organoclay supplier and manufacturer with SGS Certification and more than 20 years of experience in the field of organoclay production and sales.

Organoclay Is widely used in paints, coatings, greases, inks, oil field drilling and Hydraulic fracturing.

Our reliable quality of organoclay bentonite recognized by a group of world-class professional users and distributors. Some customers come from the top ten manufacturers in the world’s paint,grease,oil drilling mud industry.

Why Choose Camp Shinning

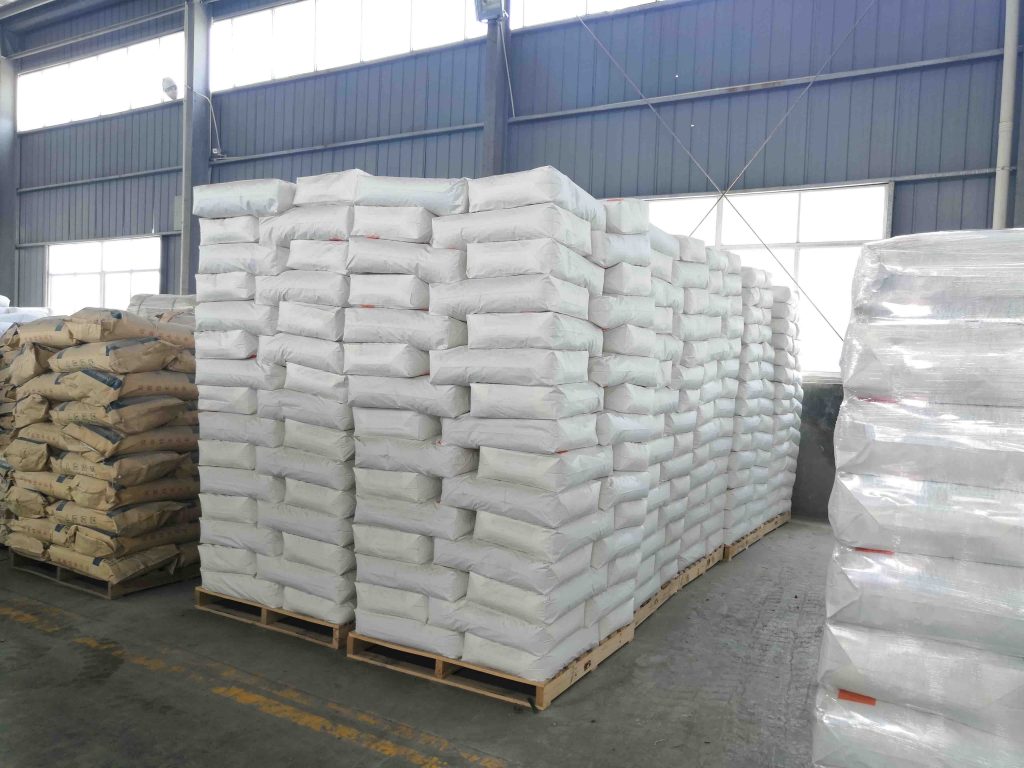

ORGANOCLAY

The Best Selling Organoclay

As an organoclay supplier and manufacturer, Camp Shinning has been committed to recommending the best organoclay to users, helping users save time to find the correct grade of organic bentonite clay that are suitable for application and have competitive price.

Camp Shinning’s products include solvent based organoclay, water based  inorganic bentonite clay, easily dispersible type, and pre-gel type organophilic clay. The polarity of the product ranges from low polarity to medium-low polarity, medium polarity to medium-high polarity, and high polarity. Here we recommend some best selling organoclay to you.

Organoclay Use For Oil Drilling Mud

Organoclay is a drilling chemical with unique rheological structure that suspends weighting materials and other solids with less increase in viscosity and gel strength than conventional bentonite. Organophilic clay is highly effective in diesel oil,distillate and mineral oil-based invert fluids. It’s provided by organoclay supplier and manufacturer –Camp Shinning.

Suitable For Base Oil : Diesel Oil,  Mineral Oil , Synthetic oil

Performance : Suspension ,Protect The Well wall, Return Cuttings, Cool The Bit,Thickening And High Temperature Stability.

Advantage :

  • Effectively suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range
  • Eliminates need for chemical activators
  • Organoclay is easy to disperse and rapid yielding
  • Suspends weighting materials and other solids
rheological modifier

Organoclay Use For Paints , Coatings , Inks

Organoclay is an organically modified montmorillonite clay for solvent-based systems of low,medium and high polarity. Camp Shinning also produce water based inorganic bentonite clay.

Typical Applications:

Alkyd paint,Zinc-rich paint,Anti-corrosion paint,Bituminous paint,Chlorinated rubber paint,Marine paint,Primer paint,Road paint,Silica paint,None solvent epoxy paint etc.

Advantage :

1, High gelling efficiency over low, medium and high polarity organic liquids.

2, Exerts strong film reinforce action in organic binder systems.
3,  High viscosity and excellent thickening property over a wide temperature range.
4, Imparts particle suspension, preventing hard settling of pigment and fillers.
5, Organoclay reproducible thixotropic consistency over a wide temperature range. Those info from Organoclay Supplier And Manufacturer –Camp Shinning.

ORGANOCLAY

Organoclay Use For Grease , Lubricant

Organoclay can be single dispersed in the base oil made bentonite grease, or can be used as a thickener and suspense agent in solid lubricants. As a thickening agent with good thickening properties,anti-corrosion properties and temperature resistance.

Typical Applications:  Grease , Lubricant

Suitable For Base Oil : Naphthenic base oil , Paraffin base oil, Recovery oil (Diesel Oil,  Mineral Oil , Synthetic oil)

Advantage :

Organoclay bentonite could increase viscosity, provide thixotropy, prevent pigment settling during storage, improve flowing and leveling, improve high temperature stability, lubricating property, film forming property, water resisting property and chemical stability

Packing:  Kraft complex  interior with PE.

The Weight:  25Kg/Bag, 22.68Kg/Bag(50lb) Or Customize.



Organoclay Use For Inks

Organoclay is an ink thickener and uv ink additives,As raw materials used to make ink with good performance of anti settling and anti sagging.

Typical Applications: Offset Inks,Screen Printing Inks,News Ink,Lithographic Ink,Letterpress And Gravure Inks

Suitable For Base Oil :  Diesel Oil,  Mineral Oil , Synthetic oil

Advantage :

Organoclay rheological additive could increase viscosity, provide thixotropy, prevent pigment settling during storage, improve flowing and leveling, improve high temperature stability, lubricating property, film forming property, water resisting property and chemical stability

Packing:  Kraft complex  interior with PE.  25Kg/Bag,22.68Kg/Bag(50lb) Or Customize.

Pls inqury with Organoclay Supplier And Manufacturer

Organoclay Supplier And Manufacturer - Camp Shinning

Camp Shinning is specialized in researching and developing the high-grade super organoclay for many years, as a supplier and manufacturer, we committed to providing the best price to world drilling services Co. and paints,grease ,inks factory, help them to take the best advantage and experience to our end customers, creates a good organoclay brand around the world. We hope every customer is satisfied with our organoclays, and more and more people know we are leading   manufacturer and supplier in Asia .

organoclay
organoclay
organoclay
organoclay
organoclay
organoclay

Advanced Equipment Test Organoclay

  In order to ensure the stable quality of each batch of organoclay, Camp Shinning has purchased a lot of advanced testing equipment.

Especially the testing equipment for organoclay bentonite used in the oil field. Camp Shinning has almost led the production market in China.

 This is why Camp Shinning can maintain the stability of the quality of each batch organoclay and protect the distributor’s advantage  of good price in the market.

Organoclay Certification

In order to take advantage of being a organoclay supplier and manufacturer in the market. In the past few years, Camp Shinning has won many certificates. ISO Certification, Audited Supplier, Certification For Safe Transport Of Chemical Goods,

organoclay

Auditor Supplier​

The certified supplier issued by the website of Made-in-China.com is the best recognition of Camp Shinning. It represents that Camp Shinning is a trustworthy Chinese organoclay supplier and manufacturer. ​

organoclay

Certification For Safe Transport Of Chemical Goods

Camp Shinning has Certification For Safe Transport Of Chemical Goods​. This means that the organoclay produced by Camp Shinning is allowed to be freely transported by sea and air, and is a non-hazardous product.

organoclay

ISO Certification

The ISO certificate means that the organoclay produced by Camp Shinning is strictly regulated and produced in accordance with ISO standards. ​

organoclay

Patent

The strong R&D capabilities enable Camp Shinning to have its own technology patents, which is also the best proof of Camp Shinning's market competitiveness.We will continue to research and develop more market-efficient organoclay with good price.

Organoclay Supplier And Manufacturer

Camp Shinning is specializing in the produce and export of organoclay with 20 years experience in China.is a professional Organoclay Supplier And Manufacturer, The application covers different industries, oil drilling, paint & coating, grease, lubricant inks and fracking fluids.

All products from Camp Shinning are produced and sold in strict accordance with ISO standards. At present, Camp Shinning’s organoclay has been certified by the Shanghai Research Institute of Chemical Industry, and has obtained the certificate of safe transportation for air and sea transportation.

Camp Shinning have own bentonite mine with excellent quality of ore,which ensure the long term stability of our quality,delivery and organoclay price.

The annual capacity is 20000 metric tons,while refined bentonite is 15000 metric tons.

  The branch company of Camp Shinning include: Zhejiang Camp Shinning New Materials Co.Ltd,Hangzhou Camp Shinning Co.Ltd, Zhejiang Camp Shinning Electric Co.Ltd and Chaoyang AutoFull Bentonite Co.Ltd. As a professional organoclay supplier and manufacturer , each company plays an important role in the technical development, production and sales .

Our aim is to provide stable quality and continuously develop new grades to ensure the competitiveness of our organoclay prices,pls inquire us now.

Organoclay supplier and manufacturer
Oilfield chemicals
organoclay
Organoclay
organoclay supplier

Organoclay Exhibition

The exhibition is the best channel for buyers to understand the professionalism of Chinese Organoclay Supplier And Manufacturer . Every year, Camp Shinning recommends the best selling bentonite organoclay rheological additive and new products to professional buyers, so that buyers can clearly understand the professionalism of our production and the unique price in the exhibition.

The exhibitions we–a Organoclay Supplier And Manufacturer  participate in includes OTC USA,Global Petroleum Show and China Coat Show etc.

Inquire Us Now

Organoclay FAQ Guide Outline

1, As a manufacturer, what is Camp Shinning’s main products?

Answer: Camp Shinning’s main products include organoclay rheology agent, matting agent, emulsifier and organophilic lignite. Among them, organoclay bentopnite rheological additive and matting powder are mainly used in paints,coatings, inks and greases, while organophilic clay bentopnite , emulsifier (Primary and secondary emulsifier) and organophilic lignite are mainly used in oilfield drilling mud and fracture fluids

2,What is the price range of organoclay produced by Camp Shinning?

Organoclay Supplier & Manufacturer

Answer: There are many kinds of organoclay bentonite. According to the different raw materials and application fields, the price of organoclay is based on the principle, and the range is very wide. Generally, the price of organoclay bentonite in oilfield mud is from USD1.5/kg to USD2.7/Kg. Organoclay Supplier And Manufacturer

And for paints,coatings, greases and inks, the organoclay price range is from US $1.7 to US $2.4, which is only a rough range, depending on different application fields and raw materials.If you want to get the specific organoclay price, you need to tell us what is your application, or what kind of similar organoclay bentonites you used in the past, which will directly and effectively help us recommend similar quality organoclay bentonite rheological additive to you.Organoclay Supplier And Manufacturer .

3,What is the minimum order quantity of Camp Shinning’s organoclay? A Organoclay Supplier And Manufacturer .

In order to support our customers to vigorously promote our organoclay bentonite, our minimum order quantity is 500kg.It’s just a pallet.

4, What is the payment method of Camp Shinning for all orders?

We accept payment by L / C at sight and 30% TT in advance and 70% against copy B / L for all organoclay rheological additive bentonites exported from Camp Shinning.

 Of course, for some old customers, we also accept payment CAD through bank.

5,What is the delivery time of the organoclay produced by Camp Shinning?Organoclay Supplier And Manufacturer

Camp Shinning’s organoclay bentonite usually takes 7 to 10 working days to deliver, which originates from the fact that Camp Shinning owns its own bentonite mine.

It plays a great role in this process, greatly saving the time of delivery and preparation of raw materials, as well as Camp Shinning’s advanced production equipment and skilled technology. It plays a comprehensive role in the delivery.

6,How long does it take for Camp Shinning to produce organoclay?

 Like the above answer, the production cycle of organoclay bentonite produced by Camp Shinning is 5-10 working days.

7,What’s the packaging method of Camp Shinning’s organoclay?

The organoclay bentonite produced by Camp Shinning is packed with paper bag lined with PE film.Can greatly play the role of moisture-proof. Organoclay Supplier And Manufacturer .

Usually, our packing methods are 25kg, 50LB and 1 metric tons. We can also customize according to customers’ requirements.

Generally, 20 FCL can hold 16 tons with pallet, 40 fcl can hold 22 tons with pallet.

8,Organoclay Supplier And Manufacturer

How long is the shelf life of the organoclay produced by Camp Shinning?

 Generally, the shelf life of Camp Shinning’s organoclay is 24 months, if it is stored in strict accordance with the Camp Shinning requirements.Organoclay Supplier And Manufacturer

9,What is the CAS number of the organoclay bentonite produced by Camp Shinning?

Organoclay Cas Number is 68953 – 58 -2 ,  Because it is a kind of amine treated bentonite clay.

10,What’s the HS number of organoclay ?

HS number of organoclay in China, we mainly use 3824, but some abroad customers use 2508.Therefore, you can verify the correct HS number according to the specific situation of your country.Basic chemical name is modification bentonite.

11,Does Camp Shinning provide free samples of organoclay ?

In order to support all potential customers to vigorously develop organoclay bentonites, Camp Shinning provides free samples for testing before big order.,Organoclay samples are free, but the freight should be borne by customers themselves.

12,How to get the quotation of Camp Shinning organoclay quickly?Organoclay Supplier And Manufacturer

Normally,  Camp Shinning ’s quotation requires a reply within 8 hours. If you are in a special emergency, you can call the sales staff of Camp Shinning directly or send an email to the sales team of Camp Shinning . They will give an emergency reply as soon as they receive your inquiry.

Organoclay sales email:  [email protected]

Cell(Whatsapp): +86-13185071071

Organoclay Supplier And Manufacturer : Camp Shinning

13,What are the transportation modes of organoclay?

The main modes of transportation for exporting organoclay bentonite are air transportation, sea transportation and railway transportation. Generally, in most countries, most customers choose by sea. For some urgent orders and small orders, customers will choose by air.Organoclay Supplier And Manufacturer

However, in Russia, many customers also choose railway transportation, Can greatly save the cost of the carrier.

14,How to solve the organoclay after-sales problem?

Camp Shinning requires all after-sales problems to be answered in time within 24 hours, because Camp Shinning have keep each batch samples before delivery organoclay, so that when there is a quality problem, they can track the quality at the first time and give the customer a definite reply.

 15,How to find a reliable supplier of organoclay?

How to find a reliable supplier of organoclay is a very complex choice. According to our experience in exporting organoclay bentonites for many years, we give the following suggestions.

First, it needs to have good qualifications, such as ISO certification and whether it has technical patents. Whether we have advanced production equipment, because this can ensure whether the organoclay bentonite can be produced in quality and quantity.Do you have a first-class technical team to provide formula adjustment and improvement, as well as technical training before sales. Organoclay Supplier And Manufacturer

And we need to see if the factory has strict production process arrangement, such as inspection before delivery, including organoclay sample preservation, after-sales tracking, and whether there are strict processes to support and sell the market.

16,Where can I buy high quality organoclay?

There are many suppliers of organoclay bentonites in China, so where can I buy high quality organoclay bentonites? I think the answer is that it’s a correct way to contact Camp Shinning Co., Ltd. Because Camp Shinning is a high-quality supplier and manufacturer of organoclay bentonite.

17, What’s the reasons for choosing Camp Shinning as an organoclay supplier?Organoclay Supplier And Manufacturer

Why we choose Camp Shinning as the supplier of organoclay bentonite? The answer is the same as the above.

First of all, we see that Camp Shinning has ISO certification and technology patents. He has his own unique method and experience in basic production. At the same time,  Camp Shinning’s R & D team is also very first-class, They have their own unique ways to develop new products and improve the quality of old products.

 Camp Shinning Organoclay Supplier And Manufacturer —has its own bentonite raw ore is also a bright spot.Therefore, it is a correct choice and decision for you to choose Camp Shinning as your supplier of organoclay bentonite.

 18,As a well-known supplier of organoclay, what are the advantages of Camp Shinning?

We can list the advantages of the Camp Shinning as follows.Camp Shinning own their own bentonite raw ore .Camp Shinning has a first-class R & D team.

Camp Shinning have advanced production equipment. Camp Shinning do strict pre shipment inspection and sample retention for each batch of organoclay bentonite export.

19,What countries and markets does Camp Shinning export?Organoclay Supplier And Manufacturer .

So far, Camp Shinning has export organoclay to more than 20 countries, including the United States, Russia, Canada, Abu Dhabi, Ukraine, Mexico, South Africa and so on.

Among them, in Russia, the organoclay produced by Camp Shinning is very popular in the oil field.

20,What certificates does Camp Shinning have as a professional  Organoclay Supplier & Manufacturer?

 As a professional manufacturer and supplier of organoclay, Camp Shinning has ISO certification and certification for safe transport of chemical goods .

which greatly ensures that the organoclay rheological additive produced by Camp Shinning which is produced in strict accordance with the ISO requirements, and it proves that Camp Shinning’s organoclay are safe and reliable, and can be safely exported and transported.Organoclay Supplier And Manufacturer .

21,As an organoclay supplier, what professional exhibitions does Camp Shinning mainly participate in?

Almost every year,  Camp Shinning participates in China Coatings China, OTC USA, American oil exhibition, Abu Dhabi oil exhibition, Canadian oil exhibition and Russian oil exhibition. Through these exhibitions.

Organoclay Supplier And Manufacturer Camp Shinning can carry out face-to-face communication and negotiation with their latest technical products, technicians and dealers.

—————————————————————————————————–

What is organoclay?

Organoclay rheologic agent is a kind of modified bentonite. Its appearance is white powder. It has good thixotropy, rheology, suspension, anti sagging, anti settling and other properties. Organoclay is widely used in paint, ink, lubricant, drilling, oil field and other application fields. Organoclay Cas Number is 68953 – 58 -2 ,Organoclay HS Number is 3824.

What industrial fields are organoclay mainly used in?

This answer from Organoclay Supplier And Manufacturer .

Organoclay bentonite is widely used in different industrial fields. At present, the main application fields accepted and used by customers are paints, coatings, inks thickening, oil field drilling and fracturing fluid. These are the widely accepted and applied fields of Camp Shinning’s organoclay bentonite.

 What are the technical advantages of the organoclay bentonite produced by Camp Shinning?

Organoclay Supplier And Manufacturer  Camp Shinning’s organoclay bentonite has many technical advantages. The most obvious one is that it has good and transparent gell. Well, it has good rheology and thixotropy.

 In the process of preservation and storage of organoclay bentonite, the anti setting and anti sagging properties can be well maintained. When it is applied to oilfield drilling field, Its suspension and protection of the wellbore will play a very obvious role.

How many types of organoclay can be produced by the Camp Shinning?

The organobentonites produced for the Camp Shinning can be divided into many types from different latitudes.

Organoclay includes solvent based organoclay and water-based organoclay. From the point of view of operation teaching, organoclay can be divided into pre gel type organoclay bentonite and easy dispersible organoclay bentonite.

According to the different polarity, organoclay bentonites can be divided into low polarity, middle polarity, middle and high polarity organoclay bentonites and high polarity organoclay bentonites.

How to use Camp Shinning’s organoclay?

Firstly, recommended Level of Camp Shinning organoclay are typically 0.2% to 2.0% of the weight of the system.

When organoclay is used in formulation, polar activator is needed. Polar activator is acetone/water(95/5). The dosage of activator is 20%-30% of the weight of Camp Shinning organoclay. And also high shear can promote the dispersing of rheological additive.

Adding procedure as follows:

If condition permits, heat the base oil to 60~70℃

Add organoclay while stirring, addition level is 7%-10% of the total formulation. Stir  5~10minutes

Add polar activator, addition level is 2%-3% of the total formulation. Then add other additives, stir 25~30minutes.

Use pump to help it pass colloid grinding and homogenizer. Deair, filtrate, pack.

Note: With High-speed dispersant of grinding machine, and properly prolong the dispersing time, better gelatin performance can be reached.

The formulation which uses organoclay as thickener will own high dropping point, thus can be used under high temperature and presents good impermeability and water resistance.

Is it necessary to use activator when use Camp Shinning organoclay ?

Some of the organoclay bentonites produced by Camp Shinning do not need to add polar activator, but we suggest to use activator for most organoclay bentonites, which can better promote dispersion.

When using organoclay, which activators are recommended?

The following polar activators are recommended:

Propylene carbonate/H2 O (95:5) 25-40%, based on Camp Shinning organoclay

Ethanol/H2 O (95:5) 40-60%, based on Camp Shinning organoclay

Methanol/H2 O (95:5) 25-40%, based on Camp Shinning organoclay

How to store organoclay bentonites?

Camp Shinning organoclay has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

What is the appearance of organoclay? What are Typical Properties?

The composition of organoclay is organophilic phyllosilicate.Its appearance is white powder.

Properties

Composition                      Organic derivative of a montmorillonite clay

Appearance                       Fine powder, light yellow

Moisture content (105℃,2hr)         ≤3.5%

Loss on ignition (1000℃)            34%-36%

Bulk density                       0.42g/cm3

Fineness (<74μm, %)               ≥98%

How to choose the right grade of organoclay applied to different industrial fields?

How to choose the right type of organobentonite applied to different industrial fields, First of all, we need you to tell us what is your application? Is it paint,coatings,inks ,grease or oil drilling mud?

Secondly, you can also tell us which organoclay bentonite grade you used, and we will recommend similar organoclay bentonite grades to you according to the grade and specification you told us.

Furthermore, you can also tell us your formula and your test procedure.Our engineers will recommend an organoclay bentonite suitable for your overall needs in our laboratory according to your formula.

What kind of industrial paints and coatings can rheological agent be used in?

Camp Shinning’s organoclay bentonite can be used in the following paints and coatings. Architectural coatings ,Industrial coatings ,Protective coatings ,Wood and furniture coatings ,Printing inks ,Powder coatings ,Coil coatings etc

Can organoclay rheological agent be used in water based paints?

Yes. Camp Shinning’s organoclay can be used in the water-based system, the organoclay bentonite in the paint is also commonly known as the inorganic system, which is applied to the inorganic system of paint.

 What is the main function of water-based organoclay applied to water-based coatings?

  •  High gelling effectiveness, water based organoclaycan form gel even at 2% in water
  • Easy dispersing.
  •  Gel is transparency and of light color
  • Prevents pigment Settling
  • High thixotropy, Good anti-sag property

  What kind of ink can Camp Shinning produce organoclay bentonite be applied to?

The organoclay bentonite produced for Camp Shinning can be used in newspaper ink,lithographic ink,letterpress and gravure ink etc.

Which base oil can thickening organoclay rheology agent be used in oilfield drilling?

When Camp Shinning’s organoclay bentonites were applied to oilfield drilling mud, different base oils decided that we should choose different organoclay bentonites.CP-992 can be used in mineral oil-based system, also known as white oil. In synthetic oil, coul select CP-250A organoclay bentonite which produced by Camp Shinning  .These different types of organoclay bentonites play a prominent role in suspension and protect well in different base oils.

What are the main advantages of organoclay bentonite in oilfield drilling?

The organoclay bentonite in the oil field has played an outstanding role. The following are the most obvious points:

  • Effectively suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range
  • Eliminates need for chemical activators
  • Is easy to disperse and rapid yielding
  • Suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range

What is the role of thickening organoclay rheologic agent in fracturing fluid?

The effect of organoclay bentonite used in fracturing fluid is similar to that used in Oilfield mud.In a wide range of temperatures, it can play a better suspension function.Under high temperature and high pressure, organoclay bentonites always show excellent performance.Rapid yield is also a bright spot of organoclay bentonite.

What markets are the organoclay thickeners produced by Camp Shinning used in oilfield drilling?

At present, the most used markets are Russia, Mexico and Canada, which have great recognition for Camp Shinning’s organoclay bentonite in the field of oilfield drilling.Moreover, UAE, Brazil and other countries also have relatively good sales.

Do organoclay thickeners have other chemical names?

Organoclay bentonite has many chemical names. It is also called rheological additive, organophilic clay,organophilic bentonite,rheology modifier,rheology agent,Suspending agent, thickening agent, rheological agent, etc.

 What kind of drilling fluids can the organoclay thickener produced by Camp Shinning be applied to?

Camp Shinning ’s organoclay bentonites can be used in the following drilling fluids.

Viscosifying drilling Fluids:

  • All oil based drilling fluids
  • Invert emulsion fluids
  • Workover fluids
  •  Fracture fluids

——————————————————————————————-

What Is Organoclay?

Organoclay is an organically processed bentonite powder,it is a naturally occurring clay mineral. Organoclay is also called organophilic bentonite clay and rheology modifier.It is a coating additive,grease additive and drilling additives.

Five Major Application And Functions Of Organoclay Bentonite

Applications

Advantage

Oil Drilling Mud

Effectively suspends weighting materials and other solids

Paints,Coatings

Easy dispersing,good thixotropy

Inks

Sag resistance without impairing flow and leveling, preventing hard settling

Grease Lubricant

The gel is colourless and of high clarity





Different grades of organoclay bentonitehave different activation requirements

Organoclay bentonite is a rheological additive for paints and inks in low, medium and high polar solvent systems such as aliphatic hydrocarbons, esters, and ketones.

Organic bentonite clay can be self-activated and dispersed in xylene, xylene-esters (such as butyl acetate), xylene-ketones (such as cyclohexanone) and other medium and high polar solvent systems.

In 200# solvent oil, white oil (mineral alcohol) and other aliphatic hydrocarbon low-polarity solvent systems, an activator should be added to aid dispersion (the activator is 95% ethanol, which is 40-60% of the organic earth weight). It is highly polar in alcohols. In the system (such as butanol), an activator, such as propylene carbonate, needs to be added.



What Is The Application Of Organobentonite?  Organoclay Supplier And Manufacturer

★Application in oil drilling

Organobentonite is the most basic lipophilic colloid in oil-based drilling fluids, and it is an indispensable additive. In the oil-based drilling fluid, it can not only increase the viscosity and shear force of the drilling fluid, but also reduce the filtration loss of the oil-based drilling fluid.

★Application in grease

Bentonite grease is a gelatinized grease made from organic soil and is a thickener. It has the advantages of high use temperature, no fear of moisture, no fear of humidity, colloidal stability, good chemical and thermal stability, and excellent extreme pressure resistance. Here is Organoclay Supplier & Manufacturer.

★Application in paint

Organobentonite is widely used in coatings. The use of organic bentonite in paint and ink can improve its thixotropy, suspension emulsion and stability, improve spreadability, prevent sagging, sagging, increase paint film thickness, prevent paint precipitation, improve storage stability, and improve paint quality and paint Quality and service life of parts.

★Application in cosmetics

Incorporate organic bentonite clay into various cosmetics, such as cream, grease, toothpaste and nail polish. Organobentonite is used to improve thixotropy and play a role. China supplier of organoclay would like to recommend you stable quality products.



What are the characteristics of Organoclay Rheological Additive?

Organobentonite has good adsorption, suspension, water absorption, lubricity, cohesiveness, colloid dispersion, adhesion and good cation exchange properties after encountering water. Because of its many special characteristics, bentonite is widely used in hundreds of industries and is called “organoclay” by people.

Organoclay Supplier And Manufacturer

What color is the appearance of Organoclay?

The appearance of organic bentonite clay is white. Compared with other colors of bentonite, white bentonite has low iron content, less impurities, and high purity, so the application value of white bentonite is also relatively high.

Broadly speaking, it is normal for the bentonite to show a variety of different colors. This is due to the difference in the ore belt area and the different depth of the original ore of the bentonite. Due to the high iron content of bentonite ore, it is usually reddish and yellowish. In fact, for companies that do not require high color, the performance of bentonite is not affected by the color.

Good quality bentonite has the following remarkable characteristics:Organoclay Supplier And Manufacturer

(1) Less impurities and high purity:

High-quality bentonite is characterized by low impurities, high purity, and oily luster. It has a smooth feel to the touch with our hands and is jelly-like.

Under normal circumstances, most of the bentonite we buy is processed powder, and the common specifications for fineness are 200 mesh or 325 mesh. The appearance of a good-quality bentonite product is pure white powder that we can observe with the naked eye.

(2) Rapid expansion in contact with water:

Another notable feature of high-quality bentonite is that it absorbs water quickly. After being fully dissolved in water, it can swell to at least 10-25 times its own volume, so it can become a colloidal solution.

(3) Strong cation exchange and strong adsorption:

Bentonite has strong cation exchange capacity and adsorption capacity, so bentonite can absorb or absorb various odors and colors. It is mixed with grease to make the grease smoother.

(4) Good suspension, not easy to settle:

Putting the purified bentonite powder in water has very good dispersibility and is not easy to settle.

The role of organic bentonite in oil-based mud:

(1) Protect the shaft wall: it can be penetrated, bonded and reinforced in the sand and gravel gaps around the shaft wall, so as to protect the shaft wall from collapsing.

(2) Cooling the drill tool: Organic bentonite can effectively reduce the high temperature generated when the drill bit is cutting with the ground, and cool the drill tool to prevent burning.Organoclay Supplier And Manufacturer

(3)Leakage plugging: Organic bentonite and water can form a thin and impermeable mud wall to prevent water leakage accidents and play a role of plugging.

(4) Clean the bottom of the well: The organic bentonite mud can carry the cuttings and debris at the bottom of the well along with the rotation of the drill pipe to keep the bottom of the well clean.

(5) Improve mud performance: The high-adhesive gel solution formed after the bentonite and water slurry can effectively increase the plastic viscosity, dynamic shear force, and static shear force of the mud system, thereby increasing the suspension and suspension of drill cuttings by the drilling fluid. Carrying ability.Organoclay Supplier And Manufacturer

(6) Low filter vector: Organic bentonite can be equipped with high-performance drilling fluid, which not only has less water loss but also has strong wall protection performance.

(7) Lubrication and decompression: Organic bentonite can effectively lubricate drilling tools and drill pipes, prevent borehole expansion and reduce drilling pressure.

(8) Balance formation pressure: Bentonite can stabilize and balance formation pressure for well-walled bentonite.

(9) Improve drilling rate: The efficiency of drilling engineering using bentonite is significantly increased by more than 30%, effectively reducing drilling construction costs.Organoclay Supplier And Manufacturer



What is the amount of bentonite organoclay added in the putty powder?Organoclay Supplier And Manufacturer

(1) Putty powder: Generally, the amount of putty powder and bentonite recommended by our bentonite manufacturers is controlled by adding 8-15 kg of bentonite per ton of putty powder to achieve a good water retention and lubricating effect.

(2) Putty paste: Putty paste can control the amount of bentonite added to 10~20 kg per ton of putty paste for the best effect.

 Is Camp Shining a credible organoclay supplier?

Camp Shining is a leading organoclay manufacturer & supplier in China with over 20 years of experience. Our great experience in the bentonite industry enables us to manufacture high quality organoclay.


On top of that, Camp Shining is a certified Organoclay Supplier And Manufacturer . Camp Shining has ISO 19001 quality system certifications.


We have our bentonite mine which gives us high grade organoclay. We have a modern manufacturing factory with best in class equipment.Organoclay Supplier And Manufacturer

With these, we can manufacture and supply you with quality organoclay on time. This makes Camp Shining a credible and reliable organoclay manufacturer.

The role of bentonite organoclay in coatings and paints

(1) Organoclay Bentonite in the coating can enhance the water resistance of the coating and improve the viscosity, strength and adhesion of the coating.

(2) Effectively improve the anti-settling ability and suspension performance of the coating.Organoclay Supplier And Manufacturer.

(3) It can play the role of water retention, slow drying and lubrication in the coating, thereby improving the painting performance of the coating construction.

(4) It can be used as a dispersant for coatings, effectively solving the phenomenon of poor dispersion of coatings and improving the quality of coating products.

(6) A small amount of bentonite rheological additive can be added to enhance the hiding power of the coating.

(7) Organoclay Bentonite has cold resistance and high temperature resistance, and the prepared coating can still be used at high and low temperatures in summer and winter.

(8) The hydration solution of bentonite has the advantages of good strength, good stability, good adhesion, and high adhesion. Adding to the coating can solve the defects of low strength and poor adhesion of the finished coating and can form a uniform thickness, smooth coating.Organoclay Supplier And Manufacturer .

(9) Since bentonite can greatly enhance the anti-settling ability of the coating, at this time we can add a part of heavy calcium carbonate powder to replace the light calcium carbonate powder, so as to reduce the production cost of the coating and improve the economic benefits of the enterprise.

(10) Most of the materials used in the production of polyvinyl alcohol series coatings are light calcium carbonate, which is relatively expensive. We can add part of bentonite to replace some light calcium carbonate components, and reduce the amount of light calcium carbonate used in coating products to achieve the purpose of reducing costs.Organoclay Supplier And Manufacturer

(11) Bentonite has good gelling and dispersibility after being fully diluted with a large amount of water. It can release charged ions in water, and the electrical repulsion between these ions can act as a dispersant in the coating.

(12) In waterproof coatings, high-speed moving bentonite colloidal particles collide with hot asphalt, chop it, and then crush and gel the asphalt. Polar substances in gelled asphalt particles

The bentonite particles are easily absorbed by the bentonite particles, thereby forming a colloidal hydration film on the surface of the asphalt particles, reducing the interfacial tension between the asphalt and water, preventing the asphalt particles from re-aggregating, and forming a stable dispersed phase, thereby allowing the bentonite to play a role in the coating.

(13) The purpose of adding bentonite to paint:

 The bentonite used in the paint is organically modified to improve its compatibility with the resin system in the paint and coating.  Organoclay Supplier And Manufacturer

(14) Organophilic Bentonite can greatly improve the suspension, adhesion, brushability and water resistance of coatings.

(15) Among the putty powder, Organoclay bentonite has good water swelling and lubricating properties. It has the effect of water retention, slow drying and lubrication when the putty plaster is used to plaster the wall, and the paint master has a good slippery effect during construction. It feels like your putty product Especially easy to use.

Camp Shinning is your best Organoclay Supplier & Manufacturer

What are the benefits of using organoclay bentonite for putty powder?Organoclay Supplier And Manufacturer

We know that organic bentonite is a kind of non-metallic mineral clay with montmorillonite as the main component. The difference between this kind of clay and ordinary clay is that it has a special water-absorbing swelling effect and can absorb 8-10 times its own volume of water, and It expands rapidly to 20~30 times, and has a good thixotropic lubrication effect. Therefore, when we add bentonite to putty powder or putty paste, it has many advantages, such as good thickening, thickening, water retention and lubrication effects.

Through the use of organic clay, practice has proved that the use of putty powder and bentonite has the following benefits:

(1) Water retention: In summer, when the putty powder for interior walls dries too fast, or when the scraping and sticking force is too low, we can add part of the bentonite to effectively increase the viscosity, water retention and lubrication, and it will not be used when scraping the putty. Laborious and flexible, making construction much easier!

(2) Prevent dehydration: The finished product of putty paste will inevitably appear dehydration after storage time is too long. Adding some organic bentonite can effectively solve this phenomenon and effectively delay the storage time of putty paste.Organoclay Supplier And Manufacturer



What is the dosage of organoclay bentonite added in the coatings and paints?Organoclay Supplier And Manufacturer

Addition levels are typically in 0.2%~2.0%. Polar activator (95% Ethanol or 95% Methanol) is needed. Normally addition level of polar activator is recommended to be 30%~40% of organoclay in weight.



What is the price of organoclay from Organoclay Supplier And Manufacturer ?

The price of organoclay according to different application, different ingredients and formulas, when Camp Shinning produces organic clay, the cost is very different.

Here, we provide an approximate range for purchasers’ reference.

Usually, our price is between US$1500 per ton to USD2700 per ton.

 If you can clearly tell us your application  and the grade of bentonite organoclay you have used in the past, we will recommend a model with similar performance. Because we have our own bentonite mine and years of production experience, we can effectively control costs and ensure our price advantage.

This is the advantage of being an organoclay manufacturer and supplier.

What does the organoclay HS Code? From Organoclay Supplier And Manufacturer .

 The HS code of Camp Shining’s organoclay is HS 2508.0000.



What is an organoclay CAS number?

 The CAS number for Camp Shining’s organoclay bentonite is  CAS 68953 – 58 -2

Organoclay Supplier And Manufacturer —Camp Shinning a nice producer.

What is the package Of Organoclay?

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized



What Is The Requestment For Storage?

Organoclay should store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

What is the delivery time for Camp Shining Organoclay?

The delivery time for Camp Shining Organoclay is 7-10 working days after receiving your deposit.

Intruduction Of Organoclay

Organoclay, also named organic bentonite clay, organic thickener and rheology modifier,is a fine chemical product developed in recent years.It is a white or grayish white powder which is non-poisinous.

Organoclay is a kind of inorganic mineral and organic ammonium complex. Organic bentonite clay is composed by inserting an organic covering agent through ion exchange technology.

The raw material of organolay is Bentonite which has the characteristics of strong adsorption and swelling characteristics, good dispersion in water and good thixotropy in solution.

The reason why bentonite has such characteristics is that,there are many clay minerals such as montmorillonite

in bentonite.Montmorillonite has high hydration energy.It is a kind of aluminosilicate mineral with unique properties.

When the temperature reaches 100 ~ 200 ℃, organoclay montmorillonite will lose water gradually. After dehydration, montmorillonite can reabsorb water molecules or other polar molecules. When they absorb water, they can also expand and exceed the original volume by several times.

Swelling, high dispersion and thixotropy in organic media are the main characteristics of organoclay bentonite . And it’s easily soluble in hydrocarbon solvents; it has high physical and chemical properties, and its ability to disperse, expand are better than those of the same kind of sodium bentonite and lose water are lower. Besides,it has certain wet state and dry state cohesiveness,making it has a wide range of applications.

Application purpose

Organoclay bentonite are widely used in paint, ink, grease, oilfield drilling and other industries. But it can not be used for oil-water filtration.This is due to the poor adsorption capacity of natural bentonite for hydrophobic organic matter, which did not change when natural bentonite was transformed into organic bentonite clay.



Organoclay bentonite can form gelatin in various organic solvents, Oils and liquid resins.Organoclay rheological additive has good thickening, thixotropy, suspension stability, high temperature stability, lubricity, film-forming property, water resistance and chemical stability.Organoclay Supplier And Manufacturer .



 Organoclay rheological additive has important application value in the coating industry. Generally used as anti settling agent and thickening agent, it is used as anti corrosion coating, which has the characteristics of corrosion resistance, wear resistance, salt water erosion resistance, impact resistance and not easy to wet.



In high-speed printing ink, according to the need to adjust the ink consistency, viscosity and control permeability.



In high temperature grease lubricant,  Organoclay rheological additive are especially used to prepare high temperature grease suitable for high temperature and long time continuous operation.



In oil drilling field , organoclay bentonite is the most basic lipophilic colloid and an indispensable additive. It can not only improve the viscosity and shear force of drilling fluid, but also reduce the filtration loss of oil based drilling fluid. Generally used as latex stabilizer.Organoclay Supplier And Manufacturer .



Organoclay bentonites used for glass fiber resin can improve thixotropy and suspension of the resin, so as to improve the storage stability of the resin, prevent the separation of glass and resin in the curing process, promote pumping, spraying and prevent sagging.

In addition, Camp Shinning produce organoclays are also widely used in pesticides, plastics, electronics and other industries.

Market situation and Prospect

At present, the price of organoclay bentonites is about USD1000.00 per ton at a low price and USD2600.00 to USD2700.00 per ton at a high price. China’s domestic demand for grease has reached 400000 tons per year. More infor you can ask Organoclay Supplier And Manufacturer .

With the continuous progress of organic bentonite clay production and processing technology and interest driven, more bentonite enterprises began to produce organic bentonite.

It is predicted that the demand for organobentonites in paint and coating industry alone will be very higher quantity per year; the demand for organoclay bentonites in the grease industry, especially  solvent based organoclay bentonite , will reach about more higher quantity ; the demand for organoclay bentonites in oil drilling and shale oil (gas) drilling will reach about 12000-20000 tons per year.



In the next few years, the domestic market demand for organoclay bentonites will reach 300000-400000 tons per year, and organic bentonite clay will continue to develop in the direction of refinement, serialization and functionalization.

The main development direction of organobentonite industry is to actively carry out the research of organoclay bentonite production technology, speed up the industrialization transformation of achievements, expand the application field of organoclay rheological additive bentonite, and realize the comprehensive utilization of organobentonite with high efficiency and high added value.



At last, it should be noted that the raw material for the preparation of organoclay bentonites must be raw bentonite,while the quality of bentonite, the structure, dosage, usage and preparation conditions of organic covering agent are the main factors affecting the quality of organic bentonite clay.

Conclusion

If this is your first time to purchase organoclay, understanding organic bentonite clay can be cumbersome.

This is why I wrote this guide for you.

I want to help you avoid problems, quality, price or delivery time that comes with organoclay supplier and manufacturer.

I just want to make this process easy and simple for you to understand.

But again, you don’t have to worry about organoclay – Camp Shinning is here to help you.

Just tell us what your applications, or what grade of organoclay do you used before and to which market .  This is a Organoclay Supplier And Manufacturer you can trust.

We’ll provide an organoclay solution for your specific needs.



If you have any other questions, you are welcome to email us or contact us by whatsapp, and we will respond in a timely manner within 24 hours.

Our Sales Dept :

[email protected]

Cell(Whatsapp):+86-13185071071

Organoclay supplier and manufacturer : Zhejiang Camp Shinning New Material Co.Ltd

1, As a manufacturer, what is Camp Shinning’s main products?

Answer: Camp Shinning’s main products include organoclay rheology agent, matting agent, emulsifier and organophilic lignite. Among them, organoclay bentopnite rheological additive and matting powder are mainly used in paints,coatings, inks and greases, while organophilic clay bentopnite , emulsifier (Primary and secondary emulsifier) and organophilic lignite are mainly used in oilfield drilling mud and fracture fluids.Organoclay Supplier And Manufacturer

2,What is the price range of organoclay produced by Camp Shinning?

Organoclay Supplier & Manufacturer

Answer: There are many kinds of organoclay bentonite. According to the different raw materials and application fields, the price of organoclay is based on the principle, and the range is very wide. Generally, the price of organoclay bentonite in oilfield mud is from USD1.5/kg to USD2.7/Kg.

And for paints,coatings, greases and inks, the organoclay price range is from US $1.7 to US $2.4, which is only a rough range, depending on different application fields and raw materials.If you want to get the specific organoclay price, you need to tell us what is your application, or what kind of similar organoclay bentonites you used in the past, which will directly and effectively help us recommend similar quality organoclay bentonite rheological additive to you.Organoclay Supplier And Manufacturer

3,What is the minimum order quantity of Camp Shinning’s organoclay?

In order to support our customers to vigorously promote our organoclay bentonite, our minimum order quantity is 500kg.It’s just a pallet.

4, What is the payment method of Camp Shinning for all orders?

We accept payment by L / C at sight and 30% TT in advance and 70% against copy B / L for all organoclay rheological additive bentonites exported from Camp Shinning.

 Of course, for some old customers, we also accept payment CAD through bank.

5,What is the delivery time of the organoclay produced by Camp Shinning?

Camp Shinning’s organoclay bentonite usually takes 7 to 10 working days to deliver, which originates from the fact that Camp Shinning owns its own bentonite mine.

It plays a great role in this process, greatly saving the time of delivery and preparation of raw materials, as well as Camp Shinning’s advanced production equipment and skilled technology. It plays a comprehensive role in the delivery.Organoclay Supplier And Manufacturer

6,How long does it take for Camp Shinning to produce organoclay?

 Like the above answer, the production cycle of organoclay bentonite produced by Camp Shinning is 5-10 working days.

7,What’s the packaging method of Camp Shinning’s organoclay?

The organoclay bentonite produced by Camp Shinning is packed with paper bag lined with PE film.Can greatly play the role of moisture-proof.

Usually, our packing methods are 25kg, 50LB and 1 metric tons. We can also customize according to customers’ requirements.

Generally, 20 FCL can hold 16 tons with pallet, 40 fcl can hold 22 tons with pallet.

8,How long is the shelf life of the organoclay produced by Camp Shinning?

 Generally, the shelf life of Camp Shinning’s organoclay is 24 months, if it is stored in strict accordance with the Camp Shinning requirements.

9,What is the CAS number of the organoclay bentonite produced by Camp Shinning?

Organoclay Cas Number is 68953 – 58 -2 ,  Because it is a kind of amine treated bentonite clay.Organoclay Supplier And Manufacturer

10,What’s the HS number of organoclay ?

HS number of organoclay in China, we mainly use 3824, but some abroad customers use 2508.Therefore, you can verify the correct HS number according to the specific situation of your country.Basic chemical name is modification bentonite.

11,Does Camp Shinning provide free samples of organoclay ?

In order to support all potential customers to vigorously develop organoclay bentonites, Camp Shinning provides free samples for testing before big order.,Organoclay samples are free, but the freight should be borne by customers themselves.

12,How to get the quotation of Camp Shinning organoclay quickly?

Normally,  Camp Shinning ’s quotation requires a reply within 8 hours. If you are in a special emergency, you can call the sales staff of Camp Shinning directly or send an email to the sales team of Camp Shinning . They will give an emergency reply as soon as they receive your inquiry.Organoclay Supplier And Manufacturer

Organoclay sales email:  [email protected]

Cell(Whatsapp): +86-13185071071

13,What are the transportation modes of organoclay?

The main modes of transportation for exporting organoclay bentonite are air transportation, sea transportation and railway transportation. Generally, in most countries, most customers choose by sea. For some urgent orders and small orders, customers will choose by air.

However, in Russia, many customers also choose railway transportation, Can greatly save the cost of the carrier.

14,How to solve the organoclay after-sales problem?

Camp Shinning requires all after-sales problems to be answered in time within 24 hours, because Camp Shinning have keep each batch samples before delivery organoclay, so that when there is a quality problem, they can track the quality at the first time and give the customer a definite reply.

 15,How to find a reliable supplier of organoclay?

How to find a reliable supplier of organoclay is a very complex choice. According to our experience in exporting organoclay bentonites for many years, we give the following suggestions.

First, it needs to have good qualifications, such as ISO certification and whether it has technical patents. Whether we have advanced production equipment, because this can ensure whether the organoclay bentonite can be produced in quality and quantity.Do you have a first-class technical team to provide formula adjustment and improvement, as well as technical training before sales.

And we need to see if the factory has strict production process arrangement, such as inspection before delivery, including organoclay sample preservation, after-sales tracking, and whether there are strict processes to support and sell the market.

16,Where can I buy high quality organoclay?

There are many suppliers of organoclay bentonites in China, so where can I buy high quality organoclay bentonites? I think the answer is that it’s a correct way to contact Camp Shinning Co., Ltd. Because Camp Shinning is a high-quality supplier and manufacturer of organoclay bentonite.

17, What’s the reasons for choosing Camp Shinning as an organoclay supplier?

Why we choose Camp Shinning as the supplier of organoclay bentonite? The answer is the same as the above.

First of all, we see that Camp Shinning has ISO certification and technology patents. He has his own unique method and experience in basic production. At the same time,  Camp Shinning’s R & D team is also very first-class, They have their own unique ways to develop new products and improve the quality of old products.

 Camp Shinning has its own bentonite raw ore is also a bright spot.Therefore, it is a correct choice and decision for you to choose Camp Shinning as your supplier of organoclay bentonite.

 18,As a well-known supplier of organoclay, what are the advantages of Camp Shinning?

We can list the advantages of the Camp Shinning as follows.Camp Shinning own their own bentonite raw ore .Camp Shinning has a first-class R & D team.

Camp Shinning have advanced production equipment. Camp Shinning do strict pre shipment inspection and sample retention for each batch of organoclay bentonite export.

19,What countries and markets does Camp Shinning export?

So far, Camp Shinning has export organoclay to more than 20 countries, including the United States, Russia, Canada, Abu Dhabi, Ukraine, Mexico, South Africa and so on.

Among them, in Russia, the organoclay produced by Camp Shinning is very popular in the oil field.

20,What certificates does Camp Shinning have as a professional organoclay manufacturer?

 As a professional manufacturer and supplier of organoclay, Camp Shinning has ISO certification and certification for safe transport of chemical goods .

which greatly ensures that the organoclay rheological additive produced by Camp Shinning which is produced in strict accordance with the ISO requirements, and it proves that Camp Shinning’s organoclay are safe and reliable, and can be safely exported and transported.

21,As an organoclay supplier, what professional exhibitions does Camp Shinning mainly participate in?

Almost every year,  Camp Shinning participates in China Coatings China, OTC USA, American oil exhibition, Abu Dhabi oil exhibition, Canadian oil exhibition and Russian oil exhibition. Through these exhibitions.

Camp Shinning can carry out face-to-face communication and negotiation with their latest technical products, technicians and dealers.

—————————————————————————————————–

What is organoclay?

Organoclay rheologic agent is a kind of modified bentonite. Its appearance is white powder. It has good thixotropy, rheology, suspension, anti sagging, anti settling and other properties. Organoclay is widely used in paint, ink, lubricant, drilling, oil field and other application fields. Organoclay Cas Number is 68953 – 58 -2 ,Organoclay HS Number is 3824.

What industrial fields are organoclay mainly used in?

Organoclay bentonite is widely used in different industrial fields. At present, the main application fields accepted and used by customers are paints, coatings, inks thickening, oil field drilling and fracturing fluid. These are the widely accepted and applied fields of Camp Shinning’s organoclay bentonite.

 What are the technical advantages of the organoclay bentonite produced by Camp Shinning?

Camp Shinning’s organoclay bentonite has many technical advantages. The most obvious one is that it has good and transparent gell. Well, it has good rheology and thixotropy.

 In the process of preservation and storage of organoclay bentonite, the anti setting and anti sagging properties can be well maintained. When it is applied to oilfield drilling field, Its suspension and protection of the wellbore will play a very obvious role.

How many types of organoclay can be produced by the Camp Shinning?

The organobentonites produced for the Camp Shinning can be divided into many types from different latitudes.

Organoclay includes solvent based organoclay and water-based organoclay. From the point of view of operation teaching, organoclay can be divided into pre gel type organoclay bentonite and easy dispersible organoclay bentonite.

According to the different polarity, organoclay bentonites can be divided into low polarity, middle polarity, middle and high polarity organoclay bentonites and high polarity organoclay bentonites.

How to use Camp Shinning’s organoclay?

Firstly, recommended Level of Camp Shinning organoclay are typically 0.2% to 2.0% of the weight of the system.

When organoclay is used in formulation, polar activator is needed. Polar activator is acetone/water(95/5). The dosage of activator is 20%-30% of the weight of Camp Shinning organoclay. And also high shear can promote the dispersing of rheological additive.

Adding procedure as follows:

If condition permits, heat the base oil to 60~70℃

Add organoclay while stirring, addition level is 7%-10% of the total formulation. Stir  5~10minutes

Add polar activator, addition level is 2%-3% of the total formulation. Then add other additives, stir 25~30minutes.

Use pump to help it pass colloid grinding and homogenizer. Deair, filtrate, pack.

Note: With High-speed dispersant of grinding machine, and properly prolong the dispersing time, better gelatin performance can be reached.

The formulation which uses organoclay as thickener will own high dropping point, thus can be used under high temperature and presents good impermeability and water resistance.

Is it necessary to use activator when use Camp Shinning organoclay ?

Some of the organoclay bentonites produced by Camp Shinning do not need to add polar activator, but we suggest to use activator for most organoclay bentonites, which can better promote dispersion.

When using organoclay, which activators are recommended?

The following polar activators are recommended:

Propylene carbonate/H2 O (95:5) 25-40%, based on Camp Shinning organoclay

Ethanol/H2 O (95:5) 40-60%, based on Camp Shinning organoclay

Methanol/H2 O (95:5) 25-40%, based on Camp Shinning organoclay

How to store organoclay bentonites?

Camp Shinning organoclay has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

What is the appearance of organoclay? What are Typical Properties?

The composition of organoclay is organophilic phyllosilicate.Its appearance is white powder.

Properties

Composition                      Organic derivative of a montmorillonite clay

Appearance                       Fine powder, light yellow

Moisture content (105℃,2hr)         ≤3.5%

Loss on ignition (1000℃)            34%-36%

Bulk density                       0.42g/cm3

Fineness (<74μm, %)               ≥98%

How to choose the right grade of organoclay applied to different industrial fields?

How to choose the right type of organobentonite applied to different industrial fields, First of all, we need you to tell us what is your application? Is it paint,coatings,inks ,grease or oil drilling mud?

Secondly, you can also tell us which organoclay bentonite grade you used, and we will recommend similar organoclay bentonite grades to you according to the grade and specification you told us.

Furthermore, you can also tell us your formula and your test procedure.Our engineers will recommend an organoclay bentonite suitable for your overall needs in our laboratory according to your formula.

What kind of industrial paints and coatings can rheological agent be used in?

Camp Shinning’s organoclay bentonite can be used in the following paints and coatings. Architectural coatings ,Industrial coatings ,Protective coatings ,Wood and furniture coatings ,Printing inks ,Powder coatings ,Coil coatings etc

Can organoclay rheological agent be used in water based paints?

Yes. Camp Shinning’s organoclay can be used in the water-based system, the organoclay bentonite in the paint is also commonly known as the inorganic system, which is applied to the inorganic system of paint.

 What is the main function of water-based organoclay applied to water-based coatings?

  •  High gelling effectiveness, water based organoclaycan form gel even at 2% in water
  • Easy dispersing.
  •  Gel is transparency and of light color
  • Prevents pigment Settling
  • High thixotropy, Good anti-sag property

  What kind of ink can Camp Shinning produce organoclay bentonite be applied to?

The organoclay bentonite produced for Camp Shinning can be used in newspaper ink,lithographic ink,letterpress and gravure ink etc.

Which base oil can thickening organoclay rheology agent be used in oilfield drilling?

When Camp Shinning’s organoclay bentonites were applied to oilfield drilling mud, different base oils decided that we should choose different organoclay bentonites.CP-992 can be used in mineral oil-based system, also known as white oil. In synthetic oil, coul select CP-250A organoclay bentonite which produced by Camp Shinning  .These different types of organoclay bentonites play a prominent role in suspension and protect well in different base oils.

What are the main advantages of organoclay bentonite in oilfield drilling?

The organoclay bentonite in the oil field has played an outstanding role. The following are the most obvious points:

  • Effectively suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range
  • Eliminates need for chemical activators
  • Is easy to disperse and rapid yielding
  • Suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range

What is the role of thickening organoclay rheologic agent in fracturing fluid?

The effect of organoclay bentonite used in fracturing fluid is similar to that used in Oilfield mud.In a wide range of temperatures, it can play a better suspension function.Under high temperature and high pressure, organoclay bentonites always show excellent performance.Rapid yield is also a bright spot of organoclay bentonite.

What markets are the organoclay thickeners produced by Camp Shinning used in oilfield drilling?

At present, the most used markets are Russia, Mexico and Canada, which have great recognition for Camp Shinning’s organoclay bentonite in the field of oilfield drilling.Moreover, UAE, Brazil and other countries also have relatively good sales.

Do organoclay thickeners have other chemical names?

Organoclay bentonite has many chemical names. It is also called rheological additive, organophilic clay,organophilic bentonite,rheology modifier,rheology agent,Suspending agent, thickening agent, rheological agent, etc.

 What kind of drilling fluids can the organoclay thickener produced by Camp Shinning be applied to?

Camp Shinning ’s organoclay bentonites can be used in the following drilling fluids.

Viscosifying drilling Fluids:

  • All oil based drilling fluids
  • Invert emulsion fluids
  • Workover fluids
  •  Fracture fluids

——————————————————————————————-

What Is Organoclay?

Organoclay is an organically processed bentonite powder,it is a naturally occurring clay mineral. Organoclay is also called organophilic bentonite clay and rheology modifier.It is a coating additive,grease additive and drilling additives.

Five Major Application And Functions Of Organoclay Bentonite

Applications

Advantage

Oil Drilling Mud

Effectively suspends weighting materials and other solids

Paints,Coatings

Easy dispersing,good thixotropy

Inks

Sag resistance without impairing flow and leveling, preventing hard settling

Grease Lubricant

The gel is colourless and of high clarity





Different grades of organoclay bentonitehave different activation requirements

Organoclay bentonite is a rheological additive for paints and inks in low, medium and high polar solvent systems such as aliphatic hydrocarbons, esters, and ketones.

Organic bentonite clay can be self-activated and dispersed in xylene, xylene-esters (such as butyl acetate), xylene-ketones (such as cyclohexanone) and other medium and high polar solvent systems.

In 200# solvent oil, white oil (mineral alcohol) and other aliphatic hydrocarbon low-polarity solvent systems, an activator should be added to aid dispersion (the activator is 95% ethanol, which is 40-60% of the organic earth weight). It is highly polar in alcohols. In the system (such as butanol), an activator, such as propylene carbonate, needs to be added.



What Is The Application Of Organobentonite?

★Application in oil drilling

Organobentonite is the most basic lipophilic colloid in oil-based drilling fluids, and it is an indispensable additive. In the oil-based drilling fluid, it can not only increase the viscosity and shear force of the drilling fluid, but also reduce the filtration loss of the oil-based drilling fluid.

★Application in grease

Bentonite grease is a gelatinized grease made from organic soil and is a thickener. It has the advantages of high use temperature, no fear of moisture, no fear of humidity, colloidal stability, good chemical and thermal stability, and excellent extreme pressure resistance.

★Application in paint

Organobentonite is widely used in coatings. The use of organic bentonite in paint and ink can improve its thixotropy, suspension emulsion and stability, improve spreadability, prevent sagging, sagging, increase paint film thickness, prevent paint precipitation, improve storage stability, and improve paint quality and paint Quality and service life of parts.

★Application in cosmetics

Incorporate organic bentonite clay into various cosmetics, such as cream, grease, toothpaste and nail polish. Organobentonite is used to improve thixotropy and play a role. China supplier of organoclay would like to recommend you stable quality products.



What are the characteristics of Organoclay Rheological Additive?

Organobentonite has good adsorption, suspension, water absorption, lubricity, cohesiveness, colloid dispersion, adhesion and good cation exchange properties after encountering water. Because of its many special characteristics, bentonite is widely used in hundreds of industries and is called “organoclay” by people.

What color is the appearance of Organoclay?

The appearance of organic bentonite clay is white. Compared with other colors of bentonite, white bentonite has low iron content, less impurities, and high purity, so the application value of white bentonite is also relatively high. Broadly speaking, it is normal for the bentonite to show a variety of different colors. This is due to the difference in the ore belt area and the different depth of the original ore of the bentonite. Due to the high iron content of bentonite ore, it is usually reddish and yellowish. In fact, for companies that do not require high color, the performance of bentonite is not affected by the color.

Good quality bentonite has the following remarkable characteristics:

(1) Less impurities and high purity:

High-quality bentonite is characterized by low impurities, high purity, and oily luster. It has a smooth feel to the touch with our hands and is jelly-like.

Under normal circumstances, most of the bentonite we buy is processed powder, and the common specifications for fineness are 200 mesh or 325 mesh. The appearance of a good-quality bentonite product is pure white powder that we can observe with the naked eye.

(2) Rapid expansion in contact with water:

Another notable feature of high-quality bentonite is that it absorbs water quickly. After being fully dissolved in water, it can swell to at least 10-25 times its own volume, so it can become a colloidal solution.

(3) Strong cation exchange and strong adsorption:

Bentonite has strong cation exchange capacity and adsorption capacity, so bentonite can absorb or absorb various odors and colors. It is mixed with grease to make the grease smoother.

(4) Good suspension, not easy to settle:

Putting the purified bentonite powder in water has very good dispersibility and is not easy to settle.

The role of organic bentonite in oil-based mud:

(1) Protect the shaft wall: it can be penetrated, bonded and reinforced in the sand and gravel gaps around the shaft wall, so as to protect the shaft wall from collapsing.

(2) Cooling the drill tool: Organic bentonite can effectively reduce the high temperature generated when the drill bit is cutting with the ground, and cool the drill tool to prevent burning.

(3)Leakage plugging: Organic bentonite and water can form a thin and impermeable mud wall to prevent water leakage accidents and play a role of plugging.

(4) Clean the bottom of the well: The organic bentonite mud can carry the cuttings and debris at the bottom of the well along with the rotation of the drill pipe to keep the bottom of the well clean.

(5) Improve mud performance: The high-adhesive gel solution formed after the bentonite and water slurry can effectively increase the plastic viscosity, dynamic shear force, and static shear force of the mud system, thereby increasing the suspension and suspension of drill cuttings by the drilling fluid. Carrying ability.

(6) Low filter vector: Organic bentonite can be equipped with high-performance drilling fluid, which not only has less water loss but also has strong wall protection performance.

(7) Lubrication and decompression: Organic bentonite can effectively lubricate drilling tools and drill pipes, prevent borehole expansion and reduce drilling pressure.

(8) Balance formation pressure: Bentonite can stabilize and balance formation pressure for well-walled bentonite.

(9) Improve drilling rate: The efficiency of drilling engineering using bentonite is significantly increased by more than 30%, effectively reducing drilling construction costs.



What is the amount of bentonite organoclay added in the putty powder?

(1) Putty powder: Generally, the amount of putty powder and bentonite recommended by our bentonite manufacturers is controlled by adding 8-15 kg of bentonite per ton of putty powder to achieve a good water retention and lubricating effect.

(2) Putty paste: Putty paste can control the amount of bentonite added to 10~20 kg per ton of putty paste for the best effect.

 Is Camp Shining a credible organoclay supplier?

Camp Shining is a leading organoclay manufacturer & supplier in China with over 20 years of experience. Our great experience in the bentonite industry enables us to manufacture high quality organoclay.


On top of that, Camp Shining is a certified organoclay manufacturer. Camp Shining has ISO 19001 quality system certifications.


We have our bentonite mine which gives us high grade organoclay. We have a modern manufacturing factory with best in class equipment.

With these, we can manufacture and supply you with quality organoclay on time. This makes Camp Shining a credible and reliable organoclay manufacturer.

The role of bentonite organoclay in coatings and paints

(1) Organoclay Bentonite in the coating can enhance the water resistance of the coating and improve the viscosity, strength and adhesion of the coating.

(2) Effectively improve the anti-settling ability and suspension performance of the coating.

(3) It can play the role of water retention, slow drying and lubrication in the coating, thereby improving the painting performance of the coating construction.

(4) It can be used as a dispersant for coatings, effectively solving the phenomenon of poor dispersion of coatings and improving the quality of coating products.

(6) A small amount of bentonite rheological additive can be added to enhance the hiding power of the coating.

(7) Organoclay Bentonite has cold resistance and high temperature resistance, and the prepared coating can still be used at high and low temperatures in summer and winter.

(8) The hydration solution of bentonite has the advantages of good strength, good stability, good adhesion, and high adhesion. Adding to the coating can solve the defects of low strength and poor adhesion of the finished coating and can form a uniform thickness, smooth coating.

(9) Since bentonite can greatly enhance the anti-settling ability of the coating, at this time we can add a part of heavy calcium carbonate powder to replace the light calcium carbonate powder, so as to reduce the production cost of the coating and improve the economic benefits of the enterprise.

(10) Most of the materials used in the production of polyvinyl alcohol series coatings are light calcium carbonate, which is relatively expensive. We can add part of bentonite to replace some light calcium carbonate components, and reduce the amount of light calcium carbonate used in coating products to achieve the purpose of reducing costs

(11) Bentonite has good gelling and dispersibility after being fully diluted with a large amount of water. It can release charged ions in water, and the electrical repulsion between these ions can act as a dispersant in the coating.

(12) In waterproof coatings, high-speed moving bentonite colloidal particles collide with hot asphalt, chop it, and then crush and gel the asphalt. Polar substances in gelled asphalt particles

The bentonite particles are easily absorbed by the bentonite particles, thereby forming a colloidal hydration film on the surface of the asphalt particles, reducing the interfacial tension between the asphalt and water, preventing the asphalt particles from re-aggregating, and forming a stable dispersed phase, thereby allowing the bentonite to play a role in the coating.

(13) The purpose of adding bentonite to paint:

 The bentonite used in the paint is organically modified to improve its compatibility with the resin system in the paint and coating.

(14) Organophilic Bentonite can greatly improve the suspension, adhesion, brushability and water resistance of coatings.

(15) Among the putty powder, Organoclay bentonite has good water swelling and lubricating properties. It has the effect of water retention, slow drying and lubrication when the putty plaster is used to plaster the wall, and the paint master has a good slippery effect during construction. It feels like your putty product Especially easy to use.



What are the benefits of using organoclay bentonite for putty powder?

We know that organic bentonite is a kind of non-metallic mineral clay with montmorillonite as the main component. The difference between this kind of clay and ordinary clay is that it has a special water-absorbing swelling effect and can absorb 8-10 times its own volume of water, and It expands rapidly to 20~30 times, and has a good thixotropic lubrication effect. Therefore, when we add bentonite to putty powder or putty paste, it has many advantages, such as good thickening, thickening, water retention and lubrication effects.

Through the use of organic clay, practice has proved that the use of putty powder and bentonite has the following benefits:

(1) Water retention: In summer, when the putty powder for interior walls dries too fast, or when the scraping and sticking force is too low, we can add part of the bentonite to effectively increase the viscosity, water retention and lubrication, and it will not be used when scraping the putty. Laborious and flexible, making construction much easier!

(2) Prevent dehydration: The finished product of putty paste will inevitably appear dehydration after storage time is too long. Adding some organic bentonite can effectively solve this phenomenon and effectively delay the storage time of putty paste.



What is the dosage of organoclay bentonite added in the coatings and paints?

Addition levels are typically in 0.2%~2.0%. Polar activator (95% Ethanol or 95% Methanol) is needed. Normally addition level of polar activator is recommended to be 30%~40% of organoclay in weight.



What is the price of organoclay?

The price of organoclay according to different application, different ingredients and formulas, when Camp Shinning produces organic clay, the cost is very different.

Here, we provide an approximate range for purchasers’ reference.

Usually, our price is between US$1500 per ton to USD2700 per ton.

 If you can clearly tell us your application  and the grade of bentonite organoclay you have used in the past, we will recommend a model with similar performance. Because we have our own bentonite mine and years of production experience, we can effectively control costs and ensure our price advantage.

This is the advantage of being an organoclay manufacturer and supplier.

What does the organoclay HS Code?

 The HS code of Camp Shining’s organoclay is HS 2508.0000.



What is an organoclay CAS number?

 The CAS number for Camp Shining’s organoclay bentonite is  CAS 68953 – 58 -2



What is the package Of Organoclay?

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized



What Is The Requestment For Storage?

Organoclay should store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

What is the delivery time for Camp Shining Organoclay?

The delivery time for Camp Shining Organoclay is 7-10 working days after receiving your deposit.

Intruduction Of Organoclay

Organoclay, also named organic bentonite clay, organic thickener and rheology modifier,is a fine chemical product developed in recent years.It is a white or grayish white powder which is non-poisinous.

Organoclay is a kind of inorganic mineral and organic ammonium complex. Organic bentonite clay is composed by inserting an organic covering agent through ion exchange technology.

The raw material of organolay is Bentonite which has the characteristics of strong adsorption and swelling characteristics, good dispersion in water and good thixotropy in solution.

The reason why bentonite has such characteristics is that,there are many clay minerals such as montmorillonite

in bentonite.Montmorillonite has high hydration energy.It is a kind of aluminosilicate mineral with unique properties.

When the temperature reaches 100 ~ 200 ℃, organoclay montmorillonite will lose water gradually. After dehydration, montmorillonite can reabsorb water molecules or other polar molecules. When they absorb water, they can also expand and exceed the original volume by several times.

Swelling, high dispersion and thixotropy in organic media are the main characteristics of organoclay bentonite . And it’s easily soluble in hydrocarbon solvents; it has high physical and chemical properties, and its ability to disperse, expand are better than those of the same kind of sodium bentonite and lose water are lower. Besides,it has certain wet state and dry state cohesiveness,making it has a wide range of applications.

Application purpose

Organoclay bentonite are widely used in paint, ink, grease, oilfield drilling and other industries. But it can not be used for oil-water filtration.This is due to the poor adsorption capacity of natural bentonite for hydrophobic organic matter, which did not change when natural bentonite was transformed into organic bentonite clay.



Organoclay bentonite can form gelatin in various organic solvents, Oils and liquid resins.Organoclay rheological additive has good thickening, thixotropy, suspension stability, high temperature stability, lubricity, film-forming property, water resistance and chemical stability.



 Organoclay rheological additive has important application value in the coating industry. Generally used as anti settling agent and thickening agent, it is used as anti corrosion coating, which has the characteristics of corrosion resistance, wear resistance, salt water erosion resistance, impact resistance and not easy to wet.



In high-speed printing ink, according to the need to adjust the ink consistency, viscosity and control permeability.



In high temperature grease lubricant,  Organoclay rheological additive are especially used to prepare high temperature grease suitable for high temperature and long time continuous operation.



In oil drilling field , organoclay bentonite is the most basic lipophilic colloid and an indispensable additive. It can not only improve the viscosity and shear force of drilling fluid, but also reduce the filtration loss of oil based drilling fluid. Generally used as latex stabilizer.



Organoclay bentonites used for glass fiber resin can improve thixotropy and suspension of the resin, so as to improve the storage stability of the resin, prevent the separation of glass and resin in the curing process, promote pumping, spraying and prevent sagging.

In addition, Camp Shinning produce organoclays are also widely used in pesticides, plastics, electronics and other industries.

Market situation and Prospect

At present, the price of organoclay bentonites is about USD1000.00 per ton at a low price and USD2600.00 to USD2700.00 per ton at a high price. China’s domestic demand for grease has reached 400000 tons per year.

With the continuous progress of organic bentonite clay production and processing technology and interest driven, more bentonite enterprises began to produce organic bentonite.

It is predicted that the demand for organobentonites in paint and coating industry alone will be very higher quantity per year; the demand for organoclay bentonites in the grease industry, especially  solvent based organoclay bentonite , will reach about more higher quantity ; the demand for organoclay bentonites in oil drilling and shale oil (gas) drilling will reach about 12000-20000 tons per year.



In the next few years, the domestic market demand for organoclay bentonites will reach 300000-400000 tons per year, and organic bentonite clay will continue to develop in the direction of refinement, serialization and functionalization.

The main development direction of organobentonite industry is to actively carry out the research of organoclay bentonite production technology, speed up the industrialization transformation of achievements, expand the application field of organoclay rheological additive bentonite, and realize the comprehensive utilization of organobentonite with high efficiency and high added value.



At last, it should be noted that the raw material for the preparation of organoclay bentonites must be raw bentonite,while the quality of bentonite, the structure, dosage, usage and preparation conditions of organic covering agent are the main factors affecting the quality of organic bentonite clay.

Conclusion

If this is your first time to purchase organoclay, understanding organic bentonite clay can be cumbersome.

This is why I wrote this guide for you.

I want to help you avoid problems, quality, price or delivery time that comes with organoclay supplier and manufacturer.

I just want to make this process easy and simple for you to understand.

But again, you don’t have to worry about organoclay – Camp Shinning is here to help you.

Just tell us what your applications, or what grade of organoclay do you used before and to which market…

We’ll provide an organoclay solution for your specific needs.



If you have any other questions, you are welcome to email us or contact us by whatsapp, and we will respond in a timely manner within 24 hours.

Our Sales Dept :

[email protected]

Cell(Whatsapp):+86-13185071071

Organoclay supplier and manufacturer : Zhejiang Camp Shinning New Material Co.Ltd

//
