Rheological additive for breaking fluids
CP-138Y rheological additive is an oil-treated bentonite clay-based fluid. It can be used to thicken any oil-based drilling fluid and improve wellbore cleanup during drilling and workover operations. The rheology modifier can create gel-like oil muds for long-term suspension of weighting agents in packer fluids and casing strings.
1, advantages
Improves cutting capacity and hole cleaning
Increases emulsion stability
Helps control fluid loss into the formation
Cost-effectively creates viscosity and yield strength
Suspends weighting agents and other solids.
2, Typical properties: Rheological additive
| Compound | An organic derivative of montmorillonite clay |
| Appearance | Fine powder, light yellow |
| Moisture content (105 ℃, 2 hours) | ≤3.5% |
| Maximum loss on ignition,% (1000 ℃) | (32.5 ± 1.5)% |
| Bulk density | 0.40 ~ 0.60 g / cm3 |
| Fineness (<74 µm,%) | ≥99% |
| Dispersion fineness (µm) | ≤10 |
3, Application
Base oil:
Diesel oils
Mineral oils
Synthetic oil
Linear and isomerized alpha olefins
Modified vegetable oil
Viscous drilling fluids:
All oil-based drilling fluids
Invert emulsion fluids
Working fluids
Fluids for hydraulic fracturing
4, using
A rheological additive can be added directly to the powder under high-shear conditions. The addition level is typically 0.1% to 1.0% of the total formulation weight. A polar activator is required to achieve better performance. The addition procedure is suggested below.
Add the resin to the solvent.
Add CP-138Y rheological additive while stirring slowly.
Mix at high speed for 10-15 minutes.
Add the polar activator.
Mix at high speed for 10-15 minutes.
Add the wetting agent and other additives.
Grind and proceed to the next step.
Making a pre-gel can achieve better efficiency. The pre-gel should be added at a rate of 5-8% of the total pre-gel weight. The pre-gel procedure is as follows.
Add solvent or solvent mixture.
Add CP-138Y while stirring slowly.
Mix at high speed for 5-10 minutes.
Add polar activator.
Mix at high speed for 5-10 minutes.
The polar activator is assumed to be ethanol/water (95/5), methanol/water (95/5), or acetone. The polar activator dosage is indicated below.
5, Security
All safety information is provided in the Material Safety Data Sheets of Zhejiang Camp-Shinning New Material Co., Ltd.
6, package

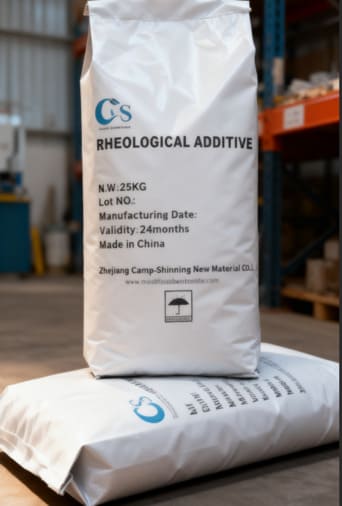

Kraft paper bag with PE liner or multi-layer paper bags or customized. 25kg/bag or 50lbs/bag or customized
7, Storage
Rheological additive CP-138Y: Store in a dry, well-ventilated area at a temperature of 0°C to 30°C. Keep the container closed. The warranty period is 24 months.
8, please note
Information regarding use is based on data believed to be reliable, but any recommendation or suggestion is made without warranty or guarantee, as conditions of use are beyond our control. All products are sold on the condition that purchasers conduct their own tests to determine the suitability of such products for their intended purpose, and that the user assumes all risks. We are not liable for damages caused by careless or improper handling or use. Nothing in this document should be construed as permission, inducement, or recommendation to practice any patented invention without a license.
