Posted on

Organophilic bentonite viscosifier primarily for diesel based mud CP-250A

Suspension agent

Organophilic bentonite viscosifier primarily for diesel based mud CP-250A

Organophilic bentonite viscosifier primarily CP-250A is a kind of purified and modified organoclay rheological additive, Organophilic hectorite clay designed especially for using in Grease based on synthetic oils| mineral oil | medium,high viscosity lubricating oil. It has high gelling efficiency, fine thixotropy and perfect anti-settling.

Properties

Composition                      Organic derivative of a montmorillonite clay

Appearance                       Fine powder, light yellow

Moisture content (105℃,2hr)         ≤3.5%

Loss on ignition (1000℃)            34%-36%

Bulk density                       0.42g/cm3

Fineness (<74μm, %)               ≥98%

Advantages

  • High efficiency
  • The gel is of light colour and high clarity
  • Easy to use, no need to pregel
  • Eliminate polar activator
  • Consistent development of rheology
  • Can be used to post correct

Application

Organophilic bentonite viscosifier CP-250A is used in the following applications:

  • Grease Lubricant(the base oil is synthetic oil such as middle-high viscosity petroleum, mineral oil, diester oil, polyester oil, vegetable oil etc.)
  • Wood coating

Using

When it is used in Grease Lubricant, polar activator is needed. Polar activator is acetone/water(95/5). The dosage of activator is 20%-30% of the weight of CP-250A. And also high shear can promote the dispersing of CP-250A.

Adding procedure as follows:

  1. If condition permits, heat the base oil to 60~70℃
  2. Add CP-250A while stirring, addition level is 7%-10% of the total formulation. Stir  5~10minutes
  3. Add polar activator, addition level is 2%-3% of the total formulation. Then add other additives, stir 25~30m
  4. Use pump to help it pass colloid grinding and homogenizer.
  5. Deair, filtrate, pack.

Note: With High-speed dispersant of grinding machine, and properly prolong the dispersing time, better gelatin performance can be reached.

The Lubricanting grease which uses organoclay as thickener will own high dropping point, thus can be used under high temperature and presents good impermeability and water resistance.

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co.,Ltd..

Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

Storage

Organophilic bentonite viscosifier  CP-250A has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made are without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Ask A Quote
Posted on

Organoclay thixotropic agent CP-257

Thixotropic agent

Thixotropic agent

Thixotropic agent CP-257 is a new style of organo clay rheological additive made from bentonite. The thixotropic additive is used in solvent and resin systems covering low polarity to high polarity range. Properties Composition                      Organic derivative of a montmorillonite clay Appearance                       Fine powder, light yellow Moisture content (105℃,2hr)         ≤3.5% Loss on ignition (1000℃)            40%-45% Bulk density                       0.40~0.60g/cm3 Fineness (<74μm, %)               ≥98% Dispersion fineness (μm)            ≤8 Advantages
  • High purity, low silica content
  • Fine dispersion and particle size
  • Good self-activated property. It can eliminate polar activator
  • Wide application range including low polarity to high polarity systems
Application Thixotropic agent  CP-257 is used in the following applications:
  • Paints including top grades paint, decorative paint, industrial paint
  • Grease, especially recommended in greases based on synthetic oils such as vegetable oil and polyester oil etc。
  • Inks
  • Cosmetic
  • Sealants and adhesive
Using Thixotropic agent can be added directly in powder under high shear condition. Addition level is commonly 0.1%~1.0% (7%-10% in greases) of total formulation by weight. In low and medium polarity solvents, polar activator is required to achieve better performance. The addition procedure is suggested as below.
  1. Add resin in solvent.
  2. Add CP-257 under slow agitation.
  3. Disperse under high speed for 10-15 minutes.
  4. Add polar activator (95% ethanol or 95% acetone)
  5. Disperse under high speed for 10-15 minutes.
  6. Add wetting agent and other additive.
  7. Grinding and next procedure.
If to make pre-gel, better efficiency can be achieved. Addition level in pre-gel is 8%-10% of total pre-gel in weight. Pre-gel procedure is as below.
  1. Add solvent or solvent mixture.
  2. Add Thixotropic agent  CP-257  under slow agitation.
  3. Disperse under high speed for 5-10 minutes.
  4. Add polar activator.
  5. Disperse under high speed for 10-15 minutes.
Polar activator is suggested to be ethanol/water (95/5)or acetone/water (95/5). Dosage of polar activator is about 10%-35% of CP-257 by weight. Note: The suggested addition level of our organoclay and polar activator is based on our lab testing. Exact dosage for detail formulation should be based on user’s testing. Safety All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co.,Ltd.. Package Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized Storage Thixotropic agent CP-257 has a shelf life of 2 years, and should be stored in ventilated cool and dry place.  [email protected] +86-19817158171  (whatsapp)
Thixotropic agent
Thixotropic agent

Ask A Quote
Posted on

Organophilic clay use for fracture fluids CP-150

Rheological clay

Organophilic clay use for fracture CP-150

Organophilic clay use for fracture CP-150 Organophilic clay use for fracture CP-150

Properties

Properties Properties

Composition                      Organically modified bentonite clay

Appearance                       Off white to tan finely divided powder,

Moisture content (105℃,2hr)         ≤3.5%

Specific Gravity                             1.7

Bulk density                                   0.40~0.60g/cm³

Advantages

Advantages Advantages
  • Effectively suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range
  • Eliminates need for chemical activators
  • Is easy to disperse and rapid yielding
  • Suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range
  • Effectively suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range
  • Eliminates need for chemical activators
  • Is easy to disperse and rapid yielding
  • Suspends weighting materials and other solids
  • Maintains suspension over a wide temperature range

    • Application

    Application Application shop nowlook at this websitechaine coque telephones20 phone caseelf bar vape australiaphone case makerbrand logo

    Organophilic Clay CP-150 is a self-activating gallant offering rapid yield development, high gel strengths, and increased efficiency. The unique properties of CP-150 are especially valuable in low-shear mud plant operations and during completion fluid manufacture at the well site

    Organophilic Clay Organophilic Clay

    Base oil:

    Base oil:
    • Diesel Oils
    • Mineral Oils
    • Synthetic Oil
    • Linear and isomerized Alpha Olefins
    • Modified vegetable oil
  • Diesel Oils
  • Mineral Oils
  • Synthetic Oil
  • Linear and isomerized Alpha Olefins
  • Modified vegetable oil

    • Viscosifying drilling Fluids:

    Viscosifying drilling Fluids:
    • All oil based drilling fluids
    • Invert emulsion fluids
    • Workover fluids
    • Fracture fluids
  • All oil based drilling fluids
  • Invert emulsion fluids
  • Workover fluids
  • Fracture fluids

    • Safety

    Safety Safety

    All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.

    Package

    Package Package

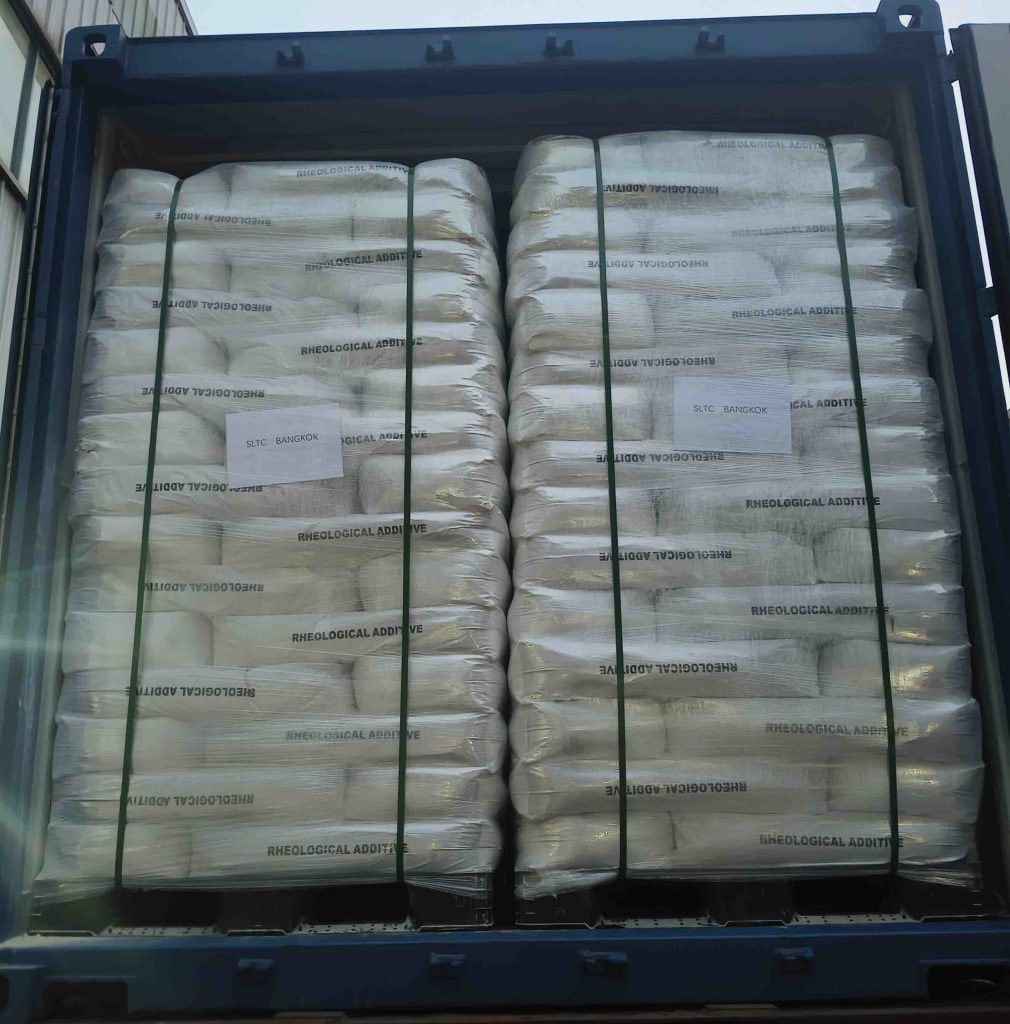

    Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

    Storage

    Storage Storage

    CP-150 Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

    Notice

    Notice Notice

    The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

    Ask A Quote
    Posted on

    Organophilic clay for oil drilling purposes CP-250A

    органофильная глина

    Organophilic clay for oil drilling purposes CP-250A

    Organophilic clay for oil drilling purposes CP-250A Organophilic clay for oil drilling purposes CP-250A Organophilic clay for oil drilling purposes CP-250A

    CP-250A is an easy dispersing and self-activating organoclay (organic modified bentonite), designed especially for use  in oil drilling mud. It can be used in different base oil for drilling fuild. Especially,it is suitable for diesel oil, low aromatic mineral oil, synthetic oil and white oil.

    CP-250A is an easy dispersing and self-activating organoclay (organic modified bentonite), designed especially for use  in oil drilling mud. It can be used in different base oil for drilling fuild. Especially,it is suitable for diesel oil, low aromatic mineral oil, synthetic oil and white oil. diesel oil, low aromatic mineral oil, synthetic oil and white oil.

    It is valuable in low-shear mud plant operations and during completion fluid manufacture at the well site. CP-250A also possesses good low temperature incorporation properties.

    It is valuable in low-shear mud plant operations and during completion fluid manufacture at the well site. CP-250A also possesses good low temperature incorporation properties.

    Properties

    Properties Properties Properties

    Composition                       Organic derivative of a montmorillonite clay

    Composition                       Organic derivative of a montmorillonite clay

    Appearance                       Off white powder

    Appearance                       Off white powder

    Density                           1.4kg/l

    Density                           1.4kg/l

    Viscosity(3% in diesel oil,600rpm)    ≥50cp

    Viscosity(3% in diesel oil,600rpm)    ≥50cp

    Fineness (200 mesh)               ≥95%

    Fineness (200 mesh)               ≥95%

    Moisture content                   ≤3.5%

    Moisture content                   ≤3.5%

    Advantages

    Advantages Advantages Advantages
    • Offering rapid yield development.
    • High gelling
    • High slurrying efficiency.
    • High thermal stability
    • Eliminate external chemical activator in all-oil and revert muds.
    • Easy dispersing.
  • Offering rapid yield development.
    • Offering rapid yield development.
  • High gelling
    • High gelling
  • High slurrying efficiency.
    • High slurrying efficiency.
  • High thermal stability
    • High thermal stability
  • Eliminate external chemical activator in all-oil and revert muds.
    • Eliminate external chemical activator in all-oil and revert muds.
  • Easy dispersing.
    • Easy dispersing.

    Suitable Solvent

    Suitable Solvent Suitable Solvent Suitable Solvent
    • Diesel oil.
    • Mineral oil.
    • Crude oil.
    • Synthetic oil.
  • Diesel oil.
    • Diesel oil.
  • Mineral oil.
    • Mineral oil.
  • Crude oil.
    • Crude oil.
  • Synthetic oil.
    • Synthetic oil.

    Using

    Using Using Using

    In oil drilling mud, it can be added directly in powder and mixed with oil. Addition level should be confirmed by testing but normally 20%-25% less than conventional organoclay. In fully oil muds, small dosage of water (0.1%-0.2%) is helpful for gelling and achieving better performance.

    In oil drilling mud, it can be added directly in powder and mixed with oil. Addition level should be confirmed by testing but normally 20%-25% less than conventional organoclay. In fully oil muds, small dosage of water (0.1%-0.2%) is helpful for gelling and achieving better performance.

    Formulation

    Formulation Formulation Formulation

                Formulation 1:

                Formulation 1:                           Formulation Formulation 1 1 : :
    Diesel Oil 744
    Lime 10
    Emusifier 20
    Wetting agent 9
    30% CaC12 brine 189
    Organoclay CP-250A 12
    Gilsonite  28
    Diesel Oil 744 Lime 10 Emusifier 20 Wetting agent 9 30% CaC12 brine 189 Organoclay CP-250A 12 Gilsonite  28 Diesel Oil 744 Diesel Oil Diesel Oil 744 744 Lime 10 Lime Lime 10 10 Emusifier 20 Emusifier Emusifier 20 20 Wetting agent 9 Wetting agent Wetting agent 9 9 30% CaC12 brine 189 30% CaC12 brine 30% CaC12 brine 189 189 Organoclay CP-250A 12 Organoclay CP-250A Organoclay CP-250A 12 12 Gilsonite  28 Gilsonite  Gilsonite  28 28

    Test result 1:

    Test result 1: Test result 1 Test result 1 : :
    Plastic viscosity, mPa·s  11 11
    YP,   Pa 1.5 1.5
    ES, volts 1026 1058
    Plastic viscosity, mPa·s  11 11 YP,   Pa 1.5 1.5 ES, volts 1026 1058 Plastic viscosity, mPa·s  11 11 Plastic viscosity, mPa·s  Plastic viscosity, mPa·s  11 11 11 11 YP,   Pa 1.5 1.5 YP,   Pa YP,   Pa 1.5 1.5 1.5 1.5 ES, volts 1026 1058 ES, volts ES, volts 1026 1026 1058 1058

    Organophilic clay for oil drilling purposes

    Organophilic clay for oil drilling purposes Organophilic clay for oil drilling purposes Organophilic clay for oil drilling purposes

    Formulation 2::

    Formulation 2:: Formulation 2: Formulation 2: : :
    Mineral  Oil 3# 200
    Lime 54.5
    Emusifier 2.5
    Wetting agent 1
    Filtrate loss reducer 8
    30% CaC12 brine 50
    Organoclay CP-250A 8.0
    Barite 750
    Mineral  Oil 3# 200 Lime 54.5 Emusifier 2.5 Wetting agent 1 Filtrate loss reducer 8 30% CaC12 brine 50 Organoclay CP-250A 8.0 Barite 750 Mineral  Oil 3# 200 Mineral  Oil 3# Mineral  Oil 3# 200 200 Lime 54.5 Lime Lime 54.5 54.5 Emusifier 2.5 Emusifier Emusifier 2.5 2.5 Wetting agent 1 Wetting agent Wetting agent 1 1 Filtrate loss reducer 8 Filtrate loss reducer Filtrate loss reducer 8 8 30% CaC12 brine 50 30% CaC12 brine 30% CaC12 brine 50 50 Organoclay CP-250A 8.0 Organoclay CP-250A Organoclay CP-250A 8.0 8.0 oneuseful sources20 phone casehandyhulle zum umhangenphone case Barite 750 Barite Barite 750 750

     Test result 2:

     Test result 2:     Test result 2 Test result 2 : :
      AV

    (mPa·s)

    		 PV

    (mPa·s)

    		 YP

    (Pa)

    		 Gel

    Pa

    		 Ф6/Ф3 FLHTHP

    (ml)

    		 ES

    (V)


    CP-250A BHR 33 29 4 3/3.5 4/3 970
    AHR 36.5 32 4.5 2.5/3.5 4/3 2.0 900
      AV

    (mPa·s)

    PV

    (mPa·s)

    YP

    (Pa)

    Gel

    Pa

    Ф6/Ф3 FLHTHP

    (ml)

    ES

    (V)

      CP-250A BHR 33 29 4 3/3.5 4/3 970 AHR 36.5 32 4.5 2.5/3.5 4/3 2.0 900   AV

    (mPa·s)

    PV

    (mPa·s)

    YP

    (Pa)

    Gel

    Pa

    Ф6/Ф3 FLHTHP

    (ml)

    ES

    (V)

              AV

    (mPa·s)

    AV

    (mPa·s)

    (mPa·s) PV

    (mPa·s)

    PV

    (mPa·s)

    (mPa·s) YP

    (Pa)

    YP

    (Pa)

    (Pa) Gel

    Pa

    Gel

    Pa

    Pa Ф6/Ф3 Ф6/Ф3 FLHTHP

    (ml)

    FLHTHP

    (ml)

    (ml) ES

    (V)

    ES

    (V)

    (V)         CP-250A BHR 33 29 4 3/3.5 4/3 970 CP-250A CP-250A BHR BHR 33 33 29 29 4 4 3/3.5 3/3.5 4/3 4/3 970 970 AHR 36.5 32 4.5 2.5/3.5 4/3 2.0 900 AHR AHR 36.5 36.5 32 32 4.5 4.5 2.5/3.5 2.5/3.5 4/3 4/3 2.0 2.0 900 900



    We are now looking for Global Distributors, Welcome to cooperate with us !

    We are now looking for Global Distributors, Welcome to cooperate with us !  We are now looking for Global Distributors, Welcome to cooperate with us !  looking for Global Distributors,

    Zhejiang Camp-Shinning New Material Co.Ltd

    Zhejiang Camp-Shinning New Material Co.Ltd Zhejiang Camp-Shinning New Material Co.Ltd Zhejiang Camp-Shinning New Material Co.Ltd

    (TEL / Wechat)  0086-13185071071

    (TEL / Wechat)  0086-13185071071  0086-13185071071

    E-MAIL:  [email protected]

    E-MAIL:  [email protected] E-MAIL:  [email protected]  [email protected]

    WEB:   www.rheologicaladditive.com

    WEB:   www.rheologicaladditive.com

    ⇒ You are welcome to send us an email to know the latest information about organoclay.We would like to send you the latest catalogue, or free organoclays samples for testing.

    ⇒ You are welcome to send us an email to know the latest information about organoclay.We would like to send you the latest catalogue, or free organoclays samples for testing. ⇒  ⇒  You are welcome to send us an email to know the latest information about organoclay. You are welcome to send us an email to know the latest information about organoclay. We would like to send you the latest catalogue, or free organoclays samples for testing. We would like to send you the latest catalogue, or free organoclays samples for testing.

    E-MAIL:  [email protected]

    E-MAIL:  [email protected] E-MAIL:  [email protected]

    WEB:  www.rheologicaladditive.com

    WEB:  www.rheologicaladditive.com   WEB:  www.rheologicaladditive.com
    Ask A Quote
    Posted on

    Organic Bentonite CP-138Y with high thixotropy efficiency

    Organic Bentonite

    Organic Bentonite CP-138Y with high thixotropy efficiency

    Organic Bentonite CP-138Y with high thixotropy efficiency Organic Bentonite CP-138Y with high thixotropy efficiency Organic Bentonite
    • Advantages
    • High purity, low silica content.
    • Fine dispersion and particle size.
    • Wide application range.
    • High viscosity and high thixotropy efficiency.
    • Gel is very transparent and of light color .
    • Typical properties
  • Advantages
    • Advantages Advantages Advantages
  • High purity, low silica content.
    • High purity, low silica content.
  • Fine dispersion and particle size.
    • Fine dispersion and particle size.
  • Wide application range.
    • Wide application range.
  • High viscosity and high thixotropy efficiency.
    • High viscosity and high thixotropy efficiency.
  • Gel is very transparent and of light color .
    • Gel is very transparent and of light color .
  • Typical properties
    • Typical properties Typical properties Typical properties
    Composition Organic derivative of a montmorillonite clay
    Appearance Fine powder, light yellow
    Moisture content (105℃,2hr) ≤3.5%
    Loss on ignition  max,%(1000℃) (32.5±1.5)%
    Bulk density 0.40~0.60g/cm3
    Fineness (<74μm, %) ≥99%
    Dispersion fineness (μm) ≤10
    Composition Organic derivative of a montmorillonite clay Appearance Fine powder, light yellow Moisture content (105℃,2hr) ≤3.5% Loss on ignition  max,%(1000℃) (32.5±1.5)% Bulk density 0.40~0.60g/cm3 Fineness (<74μm, %) ≥99% Dispersion fineness (μm) ≤10 Composition Organic derivative of a montmorillonite clay Composition Composition Organic derivative of a montmorillonite clay Organic derivative of a montmorillonite clay learn the facts here nowlearn more heresite coque de telephonespeck phone caseskorting smartphonehoesjeshttp://abcdemocracy.net/ Appearance Fine powder, light yellow Appearance Appearance Fine powder, light yellow Fine powder, light yellow Moisture content (105℃,2hr) ≤3.5% Moisture content (105℃,2hr) Moisture content (105℃,2hr) ≤3.5% ≤3.5% Loss on ignition  max,%(1000℃) (32.5±1.5)% Loss on ignition  max,%(1000℃) Loss on ignition  max,%(1000℃) (32.5±1.5)% (32.5±1.5)% ± ± 1.5) 1.5) Bulk density 0.40~0.60g/cm3 Bulk density Bulk density 0.40~0.60g/cm3 0.40~0.60g/cm3 3 Fineness (<74μm, %) ≥99% Fineness (<74μm, %) Fineness (<74μm, %) ≥99% ≥99% Dispersion fineness (μm) ≤10 Dispersion fineness (μm) Dispersion fineness (μm) ≤10 ≤10

    Application

    Application Application Application

    1，Grease.

    1，Grease.

      2，Lubricant

      2，Lubricant

      3,  Ink

      3,  Ink

    4, Paint

    4, Paint

    5, Oil drilling mud

    5, Oil drilling mud
    • Using
  • Using
    • Using Using Using
    • The addition procedure as below.
  • The addition procedure as below.
    • The addition procedure as below.
    1. Add resin in solvent.
    2. Add CP-138Y under slow agitation.
    3. Disperse under high speed for 10-15 minutes.
    4. Add polar activator.
    5. Disperse under high speed for 10-15 minutes.
    6. Add wetting agent and other additive.
    7. Grinding and next procedure.
  • Add resin in solvent.
    • Add resin in solvent.
  • Add CP-138Y under slow agitation.
    • Add CP-138Y under slow agitation.
  • Disperse under high speed for 10-15 minutes.
    • Disperse under high speed for 10-15 minutes.
  • Add polar activator.
    • Add polar activator.
  • Disperse under high speed for 10-15 minutes.
    • Disperse under high speed for 10-15 minutes.
  • Add wetting agent and other additive.
    • Add wetting agent and other additive.
  • Grinding and next procedure.
    • Grinding and next procedure.

     If to make pre-gel, better efficiency can be achieved. Addition level in pre-gel is 5%-8% of total pre-gel in weight.

     If to make pre-gel, better efficiency can be achieved. Addition level in pre-gel is 5%-8% of total pre-gel in weight.
    • Pre-gel procedure as below.
  • Pre-gel procedure as below.
    • Pre-gel procedure as below. Pre-gel procedure as below.
    1. Add solvent or solvent mixture.
    2. Add CP-138Y under slow agitation.
    3. Disperse under high speed for 5-10 minutes.
    4. Add polar activator.
    5.  Disperse under high speed for 5-10 minutes.
  • Add solvent or solvent mixture.
    • Add solvent or solvent mixture.
  • Add CP-138Y under slow agitation.
    • Add CP-138Y under slow agitation.
  • Disperse under high speed for 5-10 minutes.
    • Disperse under high speed for 5-10 minutes.
  • Add polar activator.
    • Add polar activator.
  •  Disperse under high speed for 5-10 minutes.
    •  Disperse under high speed for 5-10 minutes.

    Polar activator is suggested to be ethanol and water (95 and 5), methanol and water (95 and 5) or acetone.

    Polar activator is suggested to be ethanol and water (95 and 5), methanol and water (95 and 5) or acetone.
    • Package
  • Package
    • Package Package Package

    Kraft bag or kraft complex interior with PE or customized.

    Kraft bag or kraft complex interior with PE or customized.

    Storage

    Storage Storage Storage

    Organic Bentonite should be stored in dry place.

    Organic Bentonite should be stored in dry place.

    Notice

    Notice Notice Notice

    We disclaim any responsibility for damages resulting from careless or improper handling or use.

    We disclaim any responsibility for damages resulting from careless or improper handling or use.

    Zhejiang Camp-Shinning New Material Co.Ltd

    Zhejiang Camp-Shinning New Material Co.Ltd Zhejiang Camp-Shinning New Material Co.Ltd Zhejiang Camp-Shinning New Material Co.Ltd

    (TEL / Wechat)  0086-13185071071

    (TEL / Wechat)  0086-13185071071 0086-13185071071

    E-MAIL:  [email protected]

    E-MAIL:  [email protected] E-MAIL:  [email protected] [email protected]

    WEB:   www.rheologicaladditive.com

    WEB:   www.rheologicaladditive.com

    We are now looking for Global Distributors, Welcome to cooperate with us !

    We are now looking for Global Distributors, Welcome to cooperate with us !  We are now looking for Global Distributors, Welcome to cooperate with us !  looking for Global Distributors

    ⇒ You are welcome to send us an email to know the latest information about organoclay.

    ⇒ You are welcome to send us an email to know the latest information about organoclay. ⇒  ⇒  You are welcome to send us an email to know the latest information about organoclay. You are welcome to send us an email to know the latest information about organoclay. organoclay

    We would like to send you the latest catalogue, or free organoclays samples for testing.

    We would like to send you the latest catalogue, or free organoclays samples for testing. We would like to send you the latest catalogue, or free organoclays samples for testing. We would like to send you the latest catalogue, or free organoclays samples for testing.

    E-MAIL:  [email protected]

    E-MAIL:  [email protected] E-MAIL:  [email protected]  [email protected]

    WEB:  www.rheologicaladditive.com

    WEB:  www.rheologicaladditive.com   WEB:  www.rheologicaladditive.com







    Ask A Quote
    Posted on

    Coating additive Organoclay for paints coatings CP-40

    Modified Organoclay

    Organoclay CP-40 is an modified bentonite, designed especially for use in solvent based system. It can be used widely in solvents from low polarity to medium-high polarity.

    Organoclay Properties

    Composition                      Organic derivative of a montmorillonite clay

    Appearance                       Fine powder, light yellow

    Moisture content (105℃,2hr)         ≤3.5%

    Loss on ignition (1000℃)            28%-31%

    Bulk density                       0.53g/cm3

    Fineness (<74μm, %)               ≥98%

    Advantages– Organoclay

    • High gelling efficiency,high viscosity
    • Wide application range, it can be applied in all low, middle and high polarity range
    • Produce reproducible thixotropic consistency over a wide temperature range
    • Imparts particle suspension, preventing hard settling of pigment and fillers
    • Exerts strong film reinforcing action in organic binder systems

    Organoclay Application

    CP-40 is used in the following applications:

    • Marine paint, Industrial paint, heavy-duty, anticorrosion paint such as bituminous coatings, epoxy paints, chlorinated rubber paints
    • Grease
    • Inks
    • Sealant

    Using

    CP-40 disperses under high shear and requires a polar activator for best  efficiency. Heat is not required to obtain good dispersion. Addition levels are typically in 0.2%~2.0%. Polar activator (95% Ethanol or 95% Methanol) is needed. Normally addition level of polar activator is recommended to be 45%~60% of CP-40 in weight. If in xylene system, addition level of polar activator is about 30%-40% of CP-40 in weight.

    Pre-gel is made as below procedure.

    1. Charge solvent to mill
    2. Slowly add CP-40 (6-10% by weight of total pre-gel) to mill under agitation.
    3. Mix at high speed for 5 minutes.
    4. Add polar activator.
    5. Mix at high speed for 5 minutes.

    Package

    Kraft bag or kraft complex interior with PE or customized

    Storage

    CP-40 has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

    Notice

    The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

    Zhejiang Camp-Shinning New Material Co.Ltd

    (TEL)  0086-13185071071

    E-MAIL:  [email protected]

    WEB:  www.rheologicaladditive.com

    We are now looking for Global Distributors, Welcome to cooperate with us !

    ⇒ You are welcome to send us an email to know the latest information about organoclay. If you are interested, we will send you the latest catalogue, or free organoclays samples for testing.

    E-MAIL:  [email protected]

    WEB:  www.rheologicaladditive.com



    Ask A Quote
