Organic bentonite clay powder with good self-activated property

Rheology modifiers for waterborne paints

Organic bentonite clay powder with good self-activated property

Organic bentonite clay powder CP-24 is a new style of organoclay rheological additive made from bentonite. The common name is organic clay powder. When rheology modifiers in paints, organic clay powder has good self-activated property.

Organic clay powder is adapted for aromatic solvent, ester, ketone, alcohol and resins in medium and high polarity , such as two-component polyurethane, fluorocarbon coating, epoxy coating, zinc-rich coating etc.

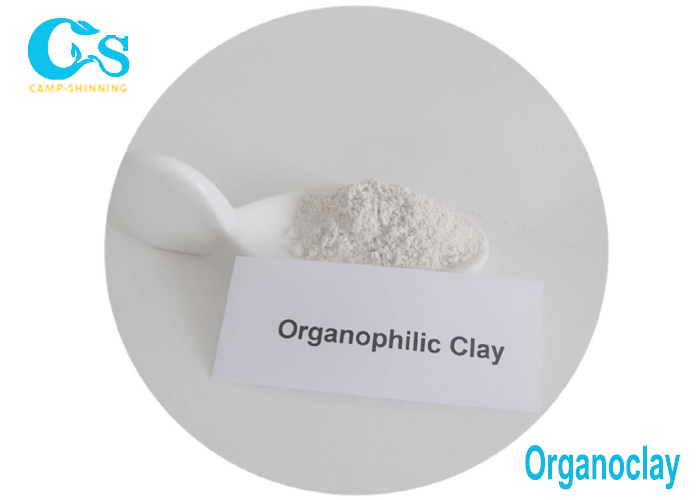

Organic bentonite clay

Properties Of Organic bentonite clay

Composition Organic derivative of a montmorillonite clay

Appearance Fine powder, light yellow

Moisture content (105℃,2hr) ≤3.5%

Loss on ignition (1000℃) (36.5±2.5)%

Bulk density 0.40-0.60g/cm3

Fineness (<74μm, %) ≥99

Dispersion fineness (μm) ≤10

Advantages

High purity, low silica content. The Quartz content is less than0.5%.
Fine dispersion and particle size.
Good self-activated property.
Gel is very transparent and of light color.
Wide application range including low polarity to high polarity systems.
Polar activator can be eliminated.
High anti-settling and anti-sag performance.

Application

Organic bentonite clay powder CP-24 is used in the following applications:

Paints including top grades paint, decorative paint, industrial

paint.anti-corrosion,container paint, marine paint and auto paint.

Printing
Sealants and adhesive.

Organic clay powder Using

Organic bentonite clay can be added directly in powder under high shear condition. Addition level is commonly 0.1%~1.0% (7%-10% in greases) of total formulation by weight. in low and medium solvents, Polar activator is required to achieve better performance. The addition procedure is suggested as below.

Add resin in solvent.
Add Organic bentonite clay CP-24 under slow agitation.
Disperse under high speed for 10-15 minutes.
Add polar activator (95% ethanol or 95% acetone)
Disperse under high speed for 10-15 minutes.
Add wetting agent and other additive.
Grinding and next procedure.

If to make pre-gel, better efficiency can be achieved. Addition level in pre-gel is 8%-10% of total pre-gel in weight. Pre-gel procedure is as below.

Add solvent or solvent mixture.
Add organic clay powder CP-24 under slow agitation.
Disperse under high speed for 5-10 minutes.
Add polar activator.
Disperse under high speed for 10-15 minutes.

Polar activator is suggested to be ethanol/water (95/5)or acetone/water (95/5). Dosage of polar activator is about 10%-35% of CP-24 by weight.

Note: The suggested addition level of our organoclay and polar activator is based on our lab testing. Exact dosage for detail formulation should be based on user’s testing.

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning Co.,Ltd..

Package

Kraft bag or kraft complex interior with PE or customized

Storage

Organic clay powder CP-24 has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control.

All organic clay powder are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Sales Dept : [email protected]

Cel （Whatsapp): +86-13185071071

organic clay powder Organic bentonite clay

1, As a manufacturer, what is Camp Shinning’s main products?

Answer: Camp Shinning’s main products include organic bentonite clay , organoclay rheology agent, matting agent, emulsifier and organophilic lignite. Among them,Organic bentonite clay and matting powder are mainly used in paints,coatings, inks and greases, while organophilic clay bentopnite , emulsifier (Primary and secondary emulsifier) and organophilic lignite are mainly used in oilfield drilling mud and fracture fluids

2,What is the price range of organic bentonite clay produced by Camp Shinning?

Answer: There are many kinds of organic bentonite clay. According to the different raw materials and application fields, the price of Organic bentonite clay is based on the principle, and the range is very wide. Generally, the price of organic bentonite clay in oilfield mud is from USD1.5/kg to USD2.7/Kg.

And for paints,coatings, greases and inks, the Organic bentonite clay price range is from US $1.7 to US $2.4, which is only a rough range, depending on different application fields and raw materials.If you want to get the specific organic bentonite clay price, you need to tell us what is your application, or what kind of similar organic bentonite clay bentonites you used in the past, which will directly and effectively help us recommend similar quality organic bentonite clay to you.

3,What is the minimum order quantity of Camp Shinning’s organic bentonite clay?

In order to support our customers to vigorously promote our organic bentonite clay, our minimum order quantity is 500kg.It’s just a pallet.

4, What is the payment method of Camp Shinning for all orders?

We accept payment by L / C at sight and 30% TT in advance and 70% against copy B / L for all organic bentonite clay rheological additive bentonites exported from Camp Shinning.

Of course, for some old customers, we also accept payment CAD through bank.

5,What is the delivery time of the organic bentonite clay produced by Camp Shinning?

Camp Shinning’s organic bentonite clay usually takes 7 to 10 working days to deliver, which originates from the fact that Camp Shinning owns its own bentonite mine. It plays a great role in this process, greatly saving the time of delivery and preparation of raw materials, as well as Camp Shinning’s advanced production equipment and skilled technology. It plays a comprehensive role in the delivery.

6,How long does it take for Camp Shinning to produce organic bentonite clay ?

Like the above answer, the production cycle of organic bentonite clay produced by Camp Shinning is 5-10 working days.

7,What’s the packaging method of Camp Shinning’s organic bentonite clay ?

The organic bentonite clay produced by Camp Shinning is packed with paper bag lined with PE film.Can greatly play the role of moisture-proof. Usually, our packing methods are 25kg, 50LB and 1 metric tons. We can also customize according to customers’ requirements.

Generally, 20 FCL can hold 16 tons with pallet, 40 fcl can hold 22 tons with pallet.

8,How long is the shelf life of the organic bentonite clay produced by Camp Shinning?

Generally, the shelf life of Camp Shinning’s organic bentonite clay is 24 months, if it is stored in strict accordance with the Camp Shinning requirements.

9,What is the CAS number of the organic bentonite clay produced by Camp Shinning?

Organic bentonite clay Cas Number is 68953 – 58 -2 , Because it is a kind of amine treated bentonite clay.

10,What’s the HS number of organic bentonite clay ?

HS number of organic bentonite clay in China, we mainly use 3824, but some abroad customers use 2508.Therefore, you can verify the correct HS number according to the specific situation of your country.Basic chemical name is modification bentonite.

11,Does Camp Shinning provide free samples of organic bentonite clay?

In order to support all potential customers to vigorously develop organic bentonite clay, Camp Shinning provides free samples for testing before big order., organic bentonite clay samples are free, but the freight should be borne by customers themselves.

12,How to get the quotation of Camp Shinning’s organic bentonite clay quickly?

Normally, Camp Shinning ’s quotation requires a reply within 8 hours. If you are in a special emergency, you can call the sales staff of Camp Shinning directly or send an email to the sales team of Camp Shinning . They will give an emergency reply as soon as they receive your inquiry.

Organoclay sales email: [email protected]

Cell(Whatsapp): +86-13185071071

13,What are the transportation modes of organic bentonite clay ?

The main modes of transportation for exporting organic bentonite clay are air transportation, sea transportation and railway transportation. Generally, in most countries, most customers choose by sea. For some urgent orders and small orders, customers will choose by air.

However, in Russia, many customers also choose railway transportation, Can greatly save the cost of the carrier.

14,How to solve the organic bentonite clay after-sales problem?

Camp Shinning requires all after-sales problems to be answered in time within 24 hours, because Camp Shinning have keep each batch samples before delivery organic bentonite clay, so that when there is a quality problem, they can track the quality at the first time and give the customer a definite reply.

15,How to find a reliable supplier of organic bentonite clay ?

How to find a reliable supplier of organic bentonite clay is a very complex choice. According to our experience in exporting organic bentonite clay for many years, we give the following suggestions. First, it needs to have good qualifications, such as ISO certification and whether it has technical patents. Whether we have advanced production equipment, because this can ensure whether the organic bentonite clay can be produced in quality and quantity.Do you have a first-class technical team to provide formula adjustment and improvement, as well as technical training before sales. And we need to see if the factory has strict production process arrangement, such as inspection before delivery, including organoclay sample preservation, after-sales tracking, and whether there are strict processes to support and sell the market.

16,Where can I buy high quality organic bentonite clay ?

There are many suppliers of organic bentonite clay in China, so where can I buy high quality organoclay bentonites? I think the answer is that it’s a correct way to contact Camp Shinning Co., Ltd. Because Camp Shinning is a high-quality supplier and manufacturer of organic bentonite clay.

17, What’s the reasons for choosing Camp Shinning as an organic bentonite clay supplier?

Why we choose Camp Shinning as the supplier of organic bentonite clay ? The answer is the same as the above. First of all, we see that Camp Shinning has ISO certification and technology patents. He has his own unique method and experience in basic production. At the same time, Camp Shinning’s R & D team is also very first-class, They have their own unique ways to develop new products and improve the quality of old products. Camp Shinning has its own bentonite raw ore is also a bright spot.Therefore, it is a correct choice and decision for you to choose Camp Shinning as your supplier of organic bentonite clay.

18,As a well-known supplier of organic bentonite clay, what are the advantages of Camp Shinning?

We can list the advantages of the Camp Shinning as follows.Camp Shinning own their own bentonite raw ore .Camp Shinning has a first-class R & D team.Camp Shinning have advanced production equipment. Camp Shinning do strict pre shipment inspection and sample retention for each batch of organic bentonite clay export.

19,What countries and markets does Camp Shinning export?

So far, Camp Shinning has export organic bentonite clay to more than 20 countries, including the United States, Russia, Canada, Abu Dhabi, Ukraine, Mexico, South Africa and so on. Among them, in Russia, the organic bentonite clay produced by Camp Shinning is very popular in the oil field.

20,What certificates does Camp Shinning have as a professional organic bentonite clay manufacturer?

As a professional manufacturer and supplier of organic bentonite clay, Camp Shinning has ISO certification and certification for safe transport of chemical goods , which greatly ensures that the organic bentonite clay produced by Camp Shinning which is produced in strict accordance with the ISO requirements, and it proves that Camp Shinning’s organophilic clay bentonite are safe and reliable, and can be safely exported and transported.

21,What kind of professional organic bentonite clay exhibitions does Camp Shinning participate in?

As the organic bentonite clay produced by Camp Shinning can be applied to different industrial fields, Camp Shinning will participate in professional exhibitions in different industrial fields. For example,Camp Shinning’s organic bentonite clay can be used in paints and coatings. We are participating in China coatings Show. For example, our organophilic clay bentonite can be applied to oil field mud. We are participating in OTC USA.Abu Dhabi oil exhibition, Canadian oil exhibition and Russian oil exhibition.

—————————————————————————————————–

What is organic bentonite clay ?

Organic bentonite clay Cas Number is 68953 – 58 -2 ,Organic bentonite clay HS Number is 3824. Organic bentonite clay is an amine treated bentonite clay.When organophilic clay used in oil field drilling, which have excellent suspension effect. Aids control of fluid loss to the formation. Organophilic clay bentonite is widely used in diesel oils,crude oils,mineral oils,synthetic Oil and alpha Olefins etc.

What are the main applications of organic bentonite clay ?

Organic bentonite clay is mainly used in oilfield drilling,invert emulsion fluids,workover fluidsl,completion fluids,casing packs,packer fluids,fracturing fluids.Therefore, our organophilic clay bentonite can be widely used and accepted by end users in oil drilling mud.

What are the technical advantages of Camp Shinning organic bentonite clay ?

The most obvious technical advantage of Camp Shinning’s Organic bentonite clay is its strong stability under high temperature and high pressure.Suspension is another characteristic of Organic bentonite clay.And the rapid dispersion and wide range of apply in different base oil, such as mineral oil, diesel oil , synthetic oil and so on.

How many types of organic bentonite clay can be classified?

The Organic bentonite clay produced by Camp Shinning can be divided into many types. When organic bentonite clay are used in oilfield drilling, they can be divided into high pressure and high temperature organophilic clay. Deep sea organophilic clay. Organophilic clay for diesel oil, organophilic clay for mineral oil and organophilic clay for synthetic oil.

How to use Camp Shinning’s organic bentonite clay ?

Firstly, recommended Level of Camp Shinning organophilic clay bentonite are typically 0.2% to 2.0% of the weight of the system.

When organic bentonite clay is used in formulation, polar activator is needed. Polar activator is acetone/water(95/5). The dosage of activator is 20%-30% of the weight of Camp Shinning organoclay. And also high shear can promote the dispersing of organophilic clay bentonite.

Adding procedure as follows:

If condition permits, heat the base oil to 60~70℃

Add organic bentonite clay while stirring, addition level is 7%-10% of the total formulation. Stir 5~10minutes

Add polar activator, addition level is 2%-3% of the total formulation. Then add other additives, stir 25~30minutes.

Use pump to help it pass colloid grinding and homogenizer. Deair, filtrate, pack.

Note: With High-speed dispersant of grinding machine, and properly prolong the dispersing time, better gelatin performance can be reached.

The formulation which uses organophilic clay bentonite as thickener will own high dropping point, thus can be used under high temperature and presents good impermeability and water resistance.

Is it necessary to use activator when use Camp Shinning’s organic bentonite clay ?

Some of the organic bentonite clay produced by Camp Shinning do not need to add polar activator, but we suggest to use activator for most organoclay bentonites, which can better promote dispersion.

When using organic bentonite clay , which activators are recommended?

The following polar activators are recommended:

Propylene carbonate/H2 O (95:5) 25-40%, based on Camp Shinning organoclay

Ethanol/H2 O (95:5) 40-60%, based on Camp Shinning organoclay

Methanol/H2 O (95:5) 25-40%, based on Camp Shinning organoclay

How to store organic bentonite clay ?

Camp Shinning organic bentonite clay has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

What is the appearance of organic bentonite clay ? What are Typical Properties?

The composition of organic bentonite clay is organophilic phyllosilicate.Its appearance is white powder.

Properties

Composition Organic derivative of a montmorillonite clay

Appearance Fine powder, light yellow

Moisture content (105℃,2hr) ≤3.5%

Loss on ignition (1000℃) 34%-36%

Bulk density 0.42g/cm3

Fineness (<74μm, %) ≥98%

How to choose the right grade of organic bentonite clay applied to different industrial fields?

How to choose the right type of organic bentonite clay applied to different industrial fields, First of all, we need you to tell us what is your application? Is it paint,coatings,inks ,grease or oil drilling mud?

Secondly, you can also tell us which grade of organic bentonite clay do you used, and we will recommend similar organophilic clay bentonite grades to you according to the grade and specification you told us.

Furthermore, you can also tell us your formula and your test procedure.Our engineers will recommend an organic bentonite clay suitable for your overall needs in our laboratory according to your formula.

What kind of industrial paints and coatings can organic bentonite clay be used in?

Camp Shinning’s organic bentonite clay can be used in the following paints and coatings. Architectural coatings ,Industrial coatings ,Protective coatings ,Wood and furniture coatings ,Printing inks ,Powder coatings ,Coil coatings etc

Can organic bentonite clay be used in water based paints?

Yes. Camp Shinning’s organic bentonite clay can be used in the water-based system, theorganophilic clay bentonite in the paint is also commonly known as the inorganic system, which is applied to the inorganic system of paint.

What is the main function of water-based organic bentonite clay applied to water-based coatings?

High gelling effectiveness, water based organic bentonite clay can form gel even at 2% in water
Easy dispersing.
Gel is transparency and of light color
Prevents pigment Settling
High thixotropy, Good anti-sag property

What kind of ink can Camp Shinning produce organic bentonite clay be applied to?

The organic bentonite clay produced for Camp Shinning can be used in newspaper ink,lithographic ink,letterpress and gravure ink etc.

Which base oil can thickening organic bentonite clay be used in oilfield drilling?

When Camp Shinning’s organic bentonite clay were applied to oilfield drilling mud, different base oils decided that we should choose different organophilic clay bentonite.CP-992 can be used in mineral oil-based system, also known as white oil. In synthetic oil, coul select CP-250A organic bentonite clay which produced by Camp Shinning .These different types of organophilic clay bentonite play a prominent role in suspension and protect well in different base oils.

What are the main advantages of organic bentonite clay in oilfield drilling?

The organic bentonite clay in the oil field has played an outstanding role. The following are the most obvious points:

Effectively suspends weighting materials and other solids
Maintains suspension over a wide temperature range
Eliminates need for chemical activators
Is easy to disperse and rapid yielding
Suspends weighting materials and other solids
Maintains suspension over a wide temperature range

What is the role of thickening organic bentonite clay in fracturing fluid?

The effect of organic bentonite clay used in fracturing fluid is similar to that used in Oilfield mud.In a wide range of temperatures, it can play a better suspension function.Under high temperature and high pressure,organophilic clay bentonite always show excellent performance.Rapid yield is also a bright spot of organoclay bentonite.

What markets are the organic bentonite clay thickeners produced by Camp Shinning used in oilfield drilling?

At present, the most used markets are Russia, Mexico and Canada, which have great recognition for Camp Shinning’s organic bentonite clay in the field of oilfield drilling.Moreover, UAE, Brazil and other countries also have relatively good sales.

Does organic bentonite clay thickeners have other chemical names?

Organic bentonite clay has many chemical names. It is also called rheological additive, organo clay,organophilic bentonite,rheology modifier,rheology agent,Suspending agent, thickening agent, rheological agent, etc.

What kind of drilling fluids can the organic bentonite clay thickener produced by Camp Shinning be applied to?

Camp Shinning ’s organic bentonite clay can be used in the following drilling fluids.

Viscosifying drilling Fluids:

All oil based drilling fluids
Invert emulsion fluids
Workover fluids
Fracture fluids

Sale Dept: [email protected]

Whatsapp: +86-13185071071

July 10, 2019April 3, 2026

Organically modified clay as organoclay control of fluid loss

Organically modified clay as organoclay control of fluid loss

Organically modified clay CP-MPB is a kind of organo clay rheological additive used in solvent and resin systems covering non polarity to high polarity range.

Organically modified clay Properties

Composition Organic derivative of a montmorillonite clay

Appearance Fine powder, light yellow

Moisture content (105℃,2hr) ≤3.5%

Loss on ignition (1000℃) 31%-34%

Bulk density 0.40~0.60g/cm3

Fineness (<74μm, %) ≥99%

Advantages

High purity, low silica content
Fine dispersion and particle size
Wide application range
High viscosity and high thixotropy efficiency
Gel is very transparent and of light color

Application

CP-MPB is used in the following applications:

Paints including top grades paint, decorative paint, industrial paint
Inks
Grease
Cosmetic
Cleaning agent

Using

Organically modified clay CP-MPB can be added directly in powder under high shear condition. Addition level is commonly 0.1%~1.0% of total formulation by weight. Polar activator is required to achieve better performance.

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning Co.,Ltd..

Package

Kraft bag or kraft complex interior with PE or customized

Storage

Organically modified clay CP-MPB has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

June 28, 2019April 3, 2026

Organomodified clay used in water-borne system

Organomodified clay used in water-borne system

1,Properties

Composition Inorganic modified montmorillonite clay

Appearance Free flowing offwhite powder

Moisture content (105℃,2hr) ≤12%

Bulk density 0.55~0.65g/cm3

Fineness (<74μm, %) ≥93%

Heavy metal ( Pb) ≤15mg/kg

2, Characteristics and Application

Organomodified clay CP-OCA is which is made from bentonite by purifying and modifying. Good thixotropic property, high dilatability, good thickening.

Used in water-based coatings and alcoholic group systems, precision casting,

ceramic color oil coatings, emulsion coatings, blunge water, self-leveling flooring

compounds, etc.Water-borne sealant, adhesive

Organomodified clay used in water-borne system

3, Organomodified clay Package and Storage

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

CP-OCA has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Organomodified clay used in water-borne system

4, Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

<a href="https://rheologicaladditive.com/">Organomodified clay</a> used in water-borne system

Mail: [email protected]

Mob: 0086-131 85 071 071

June 21, 2019November 6, 2025

Organophilic Clay Bentonite Powder For Packer Fluids Completion Fluids Workover Fluids

Organophilic clay for Packer fluids Completion fluids Workover fluids

Organophilic clay viscosifier as a drilling fluids chemicals in all–oil systems or in other fluids where no water is included in the formulation, or where water is unwanted, a chemical activator such as methanol or propylene carbonate should be added. Mixing 5% water, by weight, into the activator can enhance its efficiency.

CP-992 is an easy dispersing, self activating organoclay bentonite that exhibits high performance efficiency in diesel, low aromatic mineral oil, modified vegetable oil and synthetic base fluid formulation.Organophilic Clay CP-992 is a wet process improved viscosifier and gelling agent. It is an easy dispersing, rapid yielding organoclay. It is stable and has good suspension and thixotropic features.

1, Properties

Composition Organically modified bentonite clay

Appearance Off white to tan finely divided powder,

Moisture content (105℃,2hr) ≤3.5%

Particle size (<76μm or 200mesh) ≥98%

Specific Gravity 1.7

2, Organophilic clay viscosifier Advantages

Disperses easily in less time with less shear
High performance viscosifier for low aromatic, all mineral oil and synthetic base fluids
Cost- effectively builds viscosity and yield point
Aids control of fluid loss to the formation
Increases emulsion stability
Suspends weighting materials and other solids
Confers stability at the pressure and temperature 108Pa and 230℃

3, Application

Base oil:

Diesel Oils	Crude Oils
Mineral Oils	Synthetic Oil
Alpha Olefins	Low BTEX base oil

Viscosifying drilling Fluids:

Oil based drilling fluids	Invert emulsion fluids
Workover fluidsl	Completion fluids
Casing packs	Packer fluids Spotting fluids

4, Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.

5, Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

6, Storage

CP-992 Store in a dry, well-ventilated area with temperature of 0℃-30℃. Keep container closed. The quality guarantee period is 24 months.

7, Notice

June 20, 2019April 7, 2026

Easy Dispersing Rheological Additive With Good Self Activating In Fracture Fluids , All Oil

Easy dispersing Rheological Additive with good self activating in fracture fluids , All oil

Rheological additive CP-180B is a organo bentonite. Organophilic clay is special in mineral oil base drilling fluid diesel based, white oil based。Organic bentonite , Modified bentonite can change oil base drilling fluid rheology, suspension of carrying and in drilling fluid can improves cuttings carrying capacity and hole cleaning . Increases emulsion stability. Organic clay greatly improve the drilling fluid yield stress also improve the drilling fluid at low shear viscosity under shear, protecting borehole wall.

1, Properties

Composition Organic derivative of a montmorillonite clay

Appearance Fine powder, light yellow

Moisture content (105℃,2hr) ≤3.5%

Loss on ignition (1000℃) 29%-32%

Bulk density 0.53g/cm3

Fineness (<74μm, %) ≥98%

2, Advantages

Exerts gelling efficiency over a wide range of intermediate and low polarity
Easy dispersing
The gel is colourless and of high clarity
Produce reproducible thixotropic consistency over a wide temperature range
Imparts particle suspension, sag resistance without impairing flow and leveling, preventing hard settling of pigment and filler
Exerts strong film reinforcing action in organic binder systems

3, Application

CP-180B is used in the following applications:

Viscosifying drilling fluids including:	Invert emulsion muds
Packer fluids	Workover fluids
OIl drilling mud	Based on: Diesel oil Crude oil Mineral oil

Chemical ingredient	Alkyl Quaternary Ammonium bentonite			Quartz(SiO₂)
CAS. No.	68953-58-2			14808-60-7
Content	>99%			<1%
Item		Standard	Result
Appearance		Fine powder, light white	Fine powder, light white
Moisture Content(105℃, 2hr)		≤3.5%	2.5%
Viscosity, mpa(20-25℃)		≥900	4800
Fineness(<0.074mm)		≥98%	99.8%

4, Using

CP-180B disperses under high shear and requires a polar activator (30%~40%) for best efficiency. Heat is not required to obtain good dispersion. Addition levels are typically in 0.2%~2.0%. Polar activator (95% Ethanol or 95% Methanol) is needed. Normally addition level of polar activator is recommended to be 30%~40% of CP-180B in weight.

5, Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co.,Ltd..

6, Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

7, Storage

CP-180B has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

8, Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made are without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

June 19, 2019April 7, 2026

Thickening Agent Organoclay Rheological Additive Used Grease Lubricant

Thickening agent Organoclay Rheological Additive used Grease lubricant with anti corrosion

Organoclay Rheological Additive | Oil thickening additive CP-250A is a kind of purified and modified organoclay , designed especially for using in Grease based on synthetic oils such as vegetable oil, polyester oil.

Modified organic bentonite has high gelling efficiency, fine thixotropy and perfect anti-settling.Rheology modifier as naphthenic oils, paraffinic mineral oil and synthetic oil thickening agent has corrosion resistance high temperature performance and good thickening property, bentonite grease, can also be as a solid lubricant in the oil carrier thickener, suspending agent.

1, Properties

Composition Organic derivative of a montmorillonite clay

Appearance Fine powder, light yellow

Moisture content (105℃,2hr) ≤3.5%

Loss on ignition (1000℃) 34%-36%

Bulk density 0.42g/cm3

Fineness (<74μm, %) ≥98%

Commodity	Rheological additive
Chemical ingredient	Alkyl Quaternary Ammonium bentonite	Quartz(SiO₂)
CAS. No.	68953-58-2	14808-60-7

2, Advantages

High efficiency
The gel is of light colour and high clarity
Easy to use, no need to pregel
Eliminate polar activator
Consistent development of rheology
Can be used to post correct

3, Application

Oil thickening additive CP-250A is used in the following applications:

Grease Lubricant (the base oil is synthetic oil such as middle-high viscosity petroleum, mineral oil, diester oil, polyester oil, vegetable oil etc.)
Wood coating

4, Using

When it is used in Grease Lubricant, polar activator is needed. Polar activator is acetone/water(95/5). The dosage of activator is 20%-30% of the weight of CP-250A. And also high shear can promote the dispersing of CP-250A.

Adding procedure as follows:

If condition permits, heat the base oil to 60~70℃
Add CP-250A while stirring, addition level is 7%-10% of the total formulation. Stir 5~10minutes
Add polar activator, addition level is 2%-3% of the total formulation. Then add other additives, stir 25~30minutes.
Use pump to help it pass colloid grinding and homogenizer.
Deair, filtrate, pack.

5, Note:

With High-speed dispersant of grinding machine, and properly prolong the dispersing time, better gelatin performance can be reached.

The Lubricanting grease which uses organoclay as thickener will own high dropping point, thus can be used under high temperature and presents good impermeability and water resistance.

6, Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co.,Ltd..

7, Package

Outside the package of kraft paper bag, the inner packing uses the double layer packing of the polyethylene film bag, or the paper bag packing, the weight is usually 25 + 0.25kg, or 22.68kg/bag or customized

8, Storage

Thickening agent Rheological Additive CP-250A has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

9, Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made are without guarantee or warranty, since the conditions of use are outside our control.

All oil thickening additive are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user.

We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Sales Dept: [email protected]

Cell ( Whatsapp): +86-13185071071

oil thickening additive

Order Online

Please send your message to us
*We will reply your inquiry to this Email as soon as we see it

<a href="https://jessieshou.wufoo.com/forms/m4g0ncp1pd4qyi/">Fill out my Wufoo form!</a>

News
