Органофильная гекторитовая глина

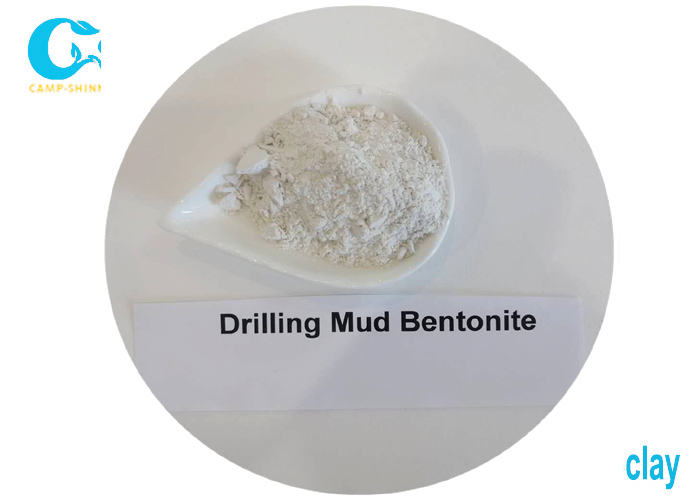

Economical rheology modifier

Organophilic hectorite clay

Hectorite Clay, an organophilic, more viscosipheric fluid loss control additive, is an organically modified clay additive that controls filtrate flow from multi-base drilling fluids into the formation. Amine-treated rheological modifiers provide superior fluid loss control while remaining effective across a wide temperature range.

1, application

Low-grade oil:

  • Diesel oils
  • Crude oils
  • Mineral oils
  • Synthetic oil
  • Alpha olefins
  • Low base oil BTES

Viscosefing Drilling Fluids: Organophilic Hectorite Clay

  • Oil-based drilling fluids
  • Invert emulsion fluids
  • Fluidsl Workover
  • Completion fluids
  • Covering the packages
  • Liquids of the packer
  • Stain liquids

Sag Prevention Viscosefier Clay Organophilic Hectorite for High Temperatures

2, properties

Bentonite clay of organically processed composition

Appearance from white to tan finely atomized powder,

Moisture content (105℃, 2xp) ≤3.5%

Particle size (<76>

Specific gravity 1.7

3, advantages

  • Disperses easily in less time with fewer scissors
  • High performance viscosipher for low aromatic, all mineral oil and synthetic low grade fluids
  • The price effectively builds the point of viscosity and exit
  • Helps control fluid loss to form
  • Increases emulsion stability
  • Suspends weighting materials and other solids
  • Stability at pressure and temperature of 108Pa and 230℃ is guaranteed.

4, security

All safety information is provided in the material safety data sheets of Zhejiang Lager-Shinning New Material Co., Ltd.

5, package

Kraft paper bag with PE liner or multi-wall paper bags or customized. 25kg/bag or 22.68kg/bag or customized

6, storage

Store the KP-992 in a dry, well-ventilated area with a temperature of 0°C to 30°C. Keep the container closed. The quality warranty period is 24 months.

7, notification

The information on use is based on data believed to be reliable, but any recommendations or offers made are without warranty or guarantee, as conditions of use are beyond our control. All products are sold on the understanding that purchasers will conduct their own tests to determine the suitability of such products for their intended purpose and that all risks are assumed by the consumer. We disclaim any liability for damages resulting from negligent or improper handling or use. Nothing herein should be taken as permission, inducement, or recommendation to practice any patented invention without a license.

Organophilic hectorite clay

If you are interested in our Organophilic Bentonite, please mail us:

[email protected]

Ask A Quote
Posted on

Органофильная глина для дизельных масел CP-982

organic bentonite clay

Organophilic clay CP-982 is an amine-treated bentonite with moderate temperature properties. This rheological additive is a cost-effective product, particularly in solid oil, invert diesel fuel, and mineral oil-based fluids where sufficient shear is present to achieve complete dispersion. Organophilic clay CP-982S is used to increase load-bearing capacity and slurry properties, providing support for heavy materials and improving the removal of cutting particles.

1, Properties
Composition of organically modified bentonite clay
Appearance White to yellowish-brown free-flowing powder
Moisture content (105 ℃, 2 hours) ≤4%
Particle size (150 mesh) ≥98%
Specific gravity 1.7
Bulk density, kg / m3 500
30% diesel oil gel, 600 rpm, CP ≥30
30% diesel oil gel, yield about 8.

2. Advantages Effective thickener and gelling agent Helps control fluid loss into the formation Increases emulsion stability Improves cutting ability of cuttings and hole cleanliness Suspends weighting agents and other solids Imparts temperature stability to the fluid.

3. Application  Base oil: Diesel oils Crude oils Mineral oils Synthetic oil.

Viscous drilling fluids:
Oil-based drilling fluids
Invert emulsion fluids
Working fluids
Completing fluids
Shell packs
Packing fluids
Spotting fluids

4. Safety All safety information is provided in the material safety data sheets for Zhejiang Camp-Shinning New Material Co., Ltd.

5. Package
Kraft paper bag with polyethylene liner or multi-layer paper bags or customized. 25kg/bag or 50lbs/bag or customized.

6. Storage Organophilic Clay Thickeners CP-982S Store in a dry, well-ventilated area with a temperature of 0℃-30℃. Keep the container sealed. The warranty period is 24 months.

7. Notice The usage information is based on data believed to be reliable, but any recommendation or suggestion is made without warranty or guarantee, as conditions of use are beyond our control. Organo bentonites are sold on the condition that purchasers make their own tests to determine the suitability of such products for their purposes and that all risks are assumed by the user. We are not responsible for damage caused by careless or improper handling or use. Nothing herein shall be construed as permission, inducement, or recommendation to practice any patented invention without a license.

We are currently seeking global distributors for our organophilic clay. Welcome to partner with us! Organophilic clay

 Email:    [email protected]
CEL (Whatsapp / Wechat): +86-13185071071

Organoclay supplier Zhejiang Camp-Shinning New Material Co.Ltd Organoclay is also called organophilic clay, rheology modifiers, organobentonite, rheological additive, organic bentonite, modified bentonite.
Organophilic clay
Ask A Quote
Posted on

Органофильный бентонит для дизелей на основе ойл CP-250A

Organoclay Bentonite

Organophilic bentonite for diesel engines based on oil CP-250A

Bentonite, a more viscosipher, is primarily a KP-250A organophilic type of purified and refined organoclay rheological additive, a hectorite organophilic clay designed specifically for use in synthetic oil-based greases, mineral oils, and high-viscosity lubricating oils. It has maximum gelling efficiency, precise thixotropy, and ideal anti-settling properties.

1, properties

An organic derivative of montmorillonite clay

Fine powder of occurrence, light yellow color

Moisture content (105℃, 2xp) ≤3.5%

Ignition loss (1000℃) 35%-38%

Bulk density 42g/km3

Pettiness (<74>

Rheological additive:

DetailStandardResult
OriginFine powder, light yellow colorFine powder, light yellow color
Moisture content (105℃, 2xp)≤3.5%3.2%
Viscosity, MPa (20-25℃)≥9008000
Smallness ( <0>≥98%99.0%

2, application

 KP-250 is used in the following applications:

  •   INK
  • Wooden coverings
  •  Maring Paints
  • Oil drilling mud
  • Fracturing fluids
  • Grease grease

3, using

When used in inks, KP-250 requires no polar solvent or heating. It can also be added while stirring. The general addition level is 0.2%-2.0% of the total formulation. This depends on actual customer testing.

Note: With high-speed disperser of grinding machine, and properly increase the dispersing time, better gelatin performance can be achieved.

4, security

All safety information is provided in the material safety data sheets of Zhejiang Lager-Shinning New Material Co., Ltd.

5, package

Kraft paper bag with PE liner or multi-wall paper bags or customized. 25kg/bag or 22.68kg/bag or customized

6, storage

KP-250 has a shelf life of 2 years and should be stored in a cool, dry, ventilated place.

7, notification

The information on use is based on data believed to be reliable, but any recommendations or offers made are without warranty or guarantee, as conditions of use are beyond our control. All products are sold on the understanding that purchasers will conduct their own tests to determine the suitability of such products for their intended purpose and that all risks are assumed by the consumer. We disclaim any liability for damages resulting from negligent or improper handling or use. Nothing herein should be taken as permission, inducement, or recommendation to practice any patented invention without a license.

Organophilic bentonite

If you are interested in our Organophilic Bentonite, please mail us:

[email protected]

Ask A Quote
Posted on

Organo modified clay rheological additive as suspension aids

Organo modified clay rheological additive

Organo modified clay rheological additive

Organobentonite CP-138Y has high purity, low silica content.  Rheological additive is an white organic bentonite clay . Modified organpclay bentonite additive has high thickenning property and colloid stability.

We suggest that when you use organic bentonite, you first make it into domain gel, that is, organic bentonite gel, and then dilute it with organic bentonite domain gel to produce a product of appropriate concentration.

In terms of technology, organic bentonite is mainly prepared by using volume, that is, organic solvent system, then bentonite, and then polar activator to mix them. If possible, add some polar activator, Continue to mix them for about 10 minutes.

This highly efficient Rheology modifier is designed for paints coatings and oil drilling mud.Organophilic clay shows high efficiency of forming gel, easily disperse and stable viscosity. Rheological additive can be used well without polar activating agent.

The gel is very transparent and of light color .

Organo modified clay rheological additive CP-138Y is a kind of organo clay rheological additive used in solvent and resin systems covering non polarity to high polarity range.

 Typical properties | Organo modified clay rheological additive

CompositionOrganic derivative of a montmorillonite clay
AppearanceFine powder, light yellow
Moisture content (105℃,2hr)≤3.5%
Loss on ignition max,%(1000℃)(32.5±1.5)%
Bulk density0.40~0.60g/cm3
Fineness (<74μm, %)≥99%
Dispersion fineness (μm)≤10

 Advantages | Organo-modified clay rheological additive

  • Fine dispersion and particle size.
  • Wide application range.
  • High viscosity and high thixotropy efficiency.

Application | Organo modified clay rheological additive

  • Grease.
  • Lubricant
  • Ink
  • Oil drilling mud

4, Using | Organo modified clay rheological additive

Organo modified clay rheological additive can be added directly in powder under high shear condition. Addition level is commonly 0.1%~1.0% of total formulation by weight. Polar activator is required to achieve better performance. The addition procedure is suggested as below.

  • Add resin in solvent.
  • Add CP-138Y under slow agitation.
  • Disperse under high speed for 10-15 minutes.
  • Add polar activator.
  • Disperse under high speed for 10-15 minutes.
  • Add wetting agent and other additive.
  • Grinding and next procedure.

If to make pre-gel, better efficiency can be achieved. Addition level in pre-gel is 5%-8% of total pre-gel in weight. Pre-gel procedure is as below.

  • Add solvent or solvent mixture.
  • Add CP-138Y under slow agitation.
  • Disperse under high speed for 5-10 minutes.
  • Add polar activator.
  • Disperse under high speed for 5-10 minutes.

Polar activator is suggested to be ethanol/water (95/5), methanol/water (95/5) or acetone. Dosage of polar activator is as below.

5, Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.

6, Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 50LB/Sack or customized

7, Storage

CP-982S Store in a dry, well-ventilated area with temperature of 0℃-30℃. Keep container closed. The quality guarantee period is 24 months.

8, Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control.

All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user.

We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Ask A Quote
Posted on

Органо-глина модифицированная бентонитом СР-34

argila organofilica

Organo clay

CP-34 Organo-Clay Modified with Bentonite
CP-34 is an organoclay (modified bentonite) developed specifically for use in solvent-based systems. This organic clay can be widely used in low-polarity and medium-polarity solvents.

1, properties

Composition of organic derivative of montmorillonite clay

Appearance: Fine powder, light yellow

Moisture content (105 ℃, 2 hours) ≤3.5%

Loss on ignition (1000 ℃) 28% -30%

Bulk density 0.53 g/cm3

Fineness (<74 µm,%) ≥98%

 benefits | Organo-clay

High gelling efficiency

Light color gel

Creates a reproducible thixotropic consistency over a wide temperature range.

Provides a suspension of particles, preventing solid sedimentation of pigment and fillers.

Effectively enhances film action in organic binder systems.

request | Organo-clay

CP-34 is used in the following cases:

Marine paints, industrial paints, heavy-duty, anti-corrosion paints such as bitumen coatings, polyester paints, alkyd paints.

sealant

ink

lubricant

Unsaturated polyester putties

Organo clay CP-34 disperses under high shear and requires a polar activator for best performance. Heat is not required to achieve good dispersal. Addition levels are typically 0.2% to 2.0%. A polar activator (95% ethanol or 95% methanol) is required. Typically, the polar activator addition level is 40% to 50% of CP-34 by weight. If the system contains xylene, the polar activator addition level is approximately 30% to 40% of the CP-34 weight.

Pre-gel is done as shown below procedure.

Solvent charge on the mill

Slowly add SR-34 (6-10% by weight of the total amount of Pregel), grind while stirring.

Mix on high speed for 5 minutes.

Add polar activator.

Mix on high speed for 5 minutes.

4, package

Kraft paper bag with PE liner or multiple paper bags or customized. 25kg/bag or 22.68kg/bag or customized

We are currently looking for global distributors for our organoclay, welcome to cooperate with us!

 Email:   [email protected]
CEL (Whatsapp / Wechat): +86-13185071071
Organoclay supplier Zhejiang Camp-Shinning New Material Co.Ltd Organoclay is also called organophilic clay, rheology modifiers, organobentonite, rheological additive, organic bentonite, modified bentonite.
Ask A Quote
Posted on

Organoclay OBM Viscosifier for all oil based drilling fluids

Organoclay OBM Viscosifier

Organoclay OBM Viscosifier for all oil based drilling fluids

Organoclay OBM Viscosifier is a economy rheological additive for diesel-based drilling fluids to increase the carrying capacity and hole cleaning capabilities. Organoclay Viscosifiers CP-160 is an easy dispersing Organoclay rheological additive that exhibits high performance efficiency in diesel, low aromatic mineral oil, modified vegetable oil and synthetic base fluid formulation.

Properties

Composition                      Organically modified bentonite clay

Appearance                       Off white to tan finely divided powder,

Moisture content (105℃,2hr)         ≤3.5%

Specific Gravity                    1.7

Bulk density                       0.40~0.60g/cm³

Advantages

Effectively suspends weighting materials and other solids

Maintains suspension over a wide temperature range

Eliminates need for chemical activators

Is easy to disperse and rapid yielding

Suspends weighting materials and other solids

Maintains suspension over a wide temperature range

Application

Organoclay Bentonite CP-160 is a self-activating gallant offering rapid yield development, high gel strengths, and increased efficiency. The unique properties of Organoclay Viscosifiers CP-160 are especially valuable in low-shear mud plant operations and during completion fluid manufacture at the well site

Base oil:

Diesel Oils

Mineral Oils

Synthetic Oil

Linear and isomerized Alpha Olefins

Modified vegetable oil

Viscosifying drilling Fluids:

All oil based drilling fluids

Invert emulsion fluids

Workover fluids

Fracture fluids

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.



Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

Storage

Organo bentonite CP-160 Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control.  Organoclay Viscosifiers are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

If you are interesting our Organoclay OBM Viscosifier,pls mail us:
