OBM Organophilic Clay For Invert emulsion fluids | Workover fluids

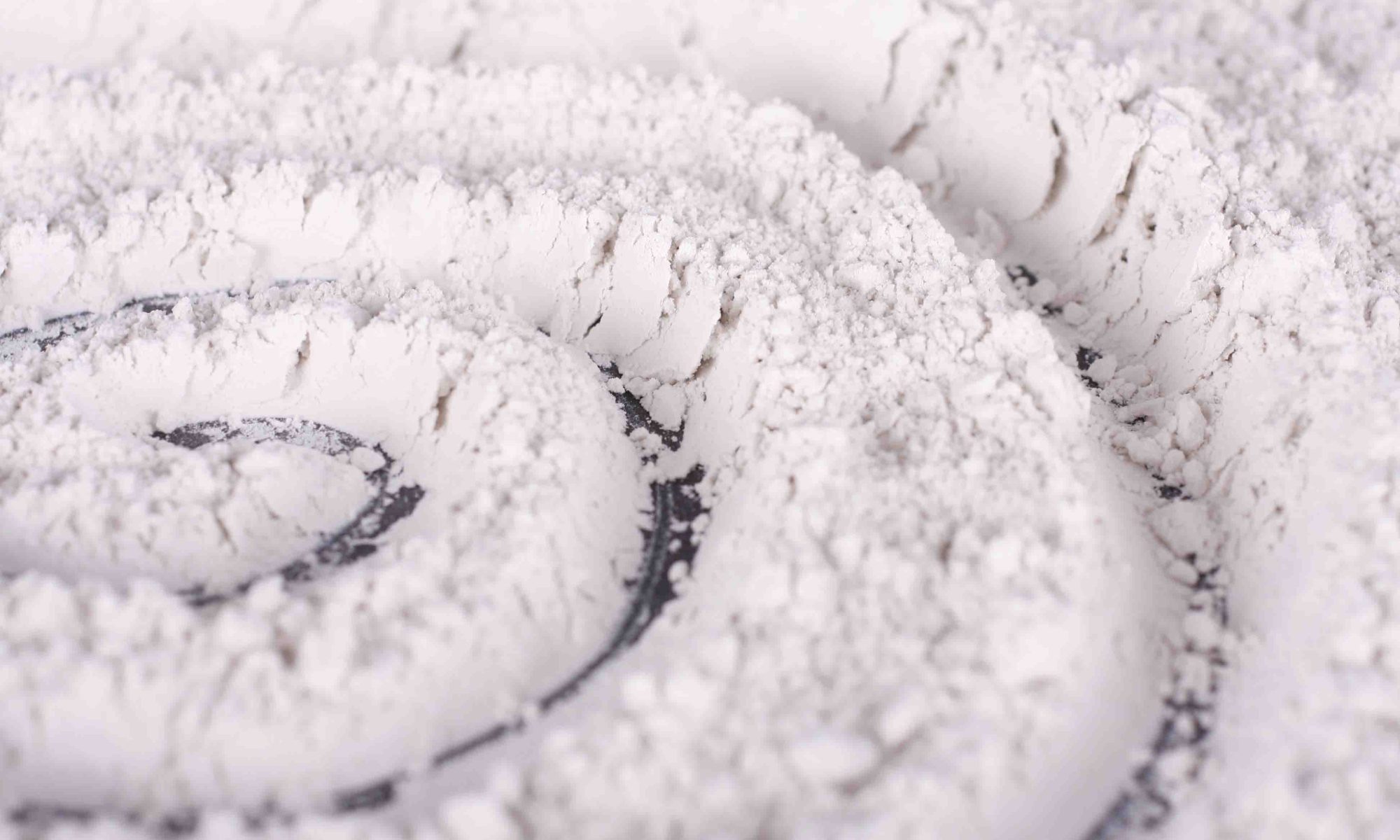

Organophilic Clay Bentonite

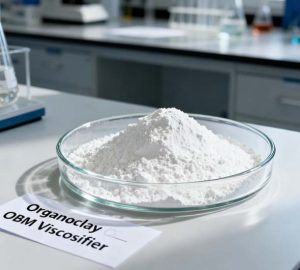

OBM Organophilic Clay

The main function of using organic bentonite in drilling fluid is to use bentonite as a suspension agent in the preparation of drilling mud. Its main function is to protect well wall, cool drill bits, and bring rock cuttings out of the well.

Our OBM Organophilic Clay is mainly used in oil-based mud systems, and for this water-based system, you will not be suitable to use our organo bentonite.

 After using organic bentonite mud, it can be used as a thickener or latex stabilizer in some drilling wells, such as deep or ultra deep wells or offshore drilling. Because these have good rheological properties and portability, it can also lubricate the drill bit to prevent corrosion, and is also a good choice.

This type of drilling mud, which uses organo clay bentonite, can be used as a latex stabilizer or as a thickener in mud fluids. It can be used to prepare excellent oil in cement slurry and high-temperature resistant anti sticking agent, greatly improving drilling efficiency and reducing accidents during drilling.

We will recommend different models of OBM Organophilic Clay based on your different base oils. Due to the lipophilicity of our product, it is very suitable for use in diesel systems, mineral oil systems, and synthetic oil systems, all of which require the use of our organic bentonite.

OBM Organophilic Clay
Ask A Quote

OBM Organophilic Clay For Invert emulsion fluids | Workover fluids

OBM Organophilic Clay CP-160 mainly use for synthetic oil,linear and isomerized Alpha Olefins,modified vegetable oil, all oil based drilling fluids ,Invert emulsion fluids,workover fluids,fracture fluids.

OBM Organophilic Clay is an easy dispersing, self activating organoclay that exhibits high performance efficiency in diesel, low aromatic mineral oil, modified vegetable oil and synthetic base fluid formulation.

CP-160 unique rheological structure suspends weighting materials and other solids with less increase in viscosity and gel strength than conventional bentonite. It is highly effective in distillate and mineral oil based invert fluids.

Properties : OBM Organophilic Clay

Composition                               Organically modified bentonite clay

Appearance                                 Off white to tan finely divided powder,

Moisture content (105℃,2hr)         ≤3.5%

Specific Gravity                             1.7

Bulk density                                  0.40~0.60g/cm³

Advantages : OBM Organophilic Clay

Effectively suspends weighting materials and other solids

Maintains suspension over a wide temperature range

Eliminates need for chemical activators

Is easy to disperse and rapid yielding

Suspends weighting materials and other solids

Maintains suspension over a wide temperature range

Application

CP-160 is a self-activating gallant offering rapid yield development, high gel strengths, and increased efficiency. The unique properties of CP-160 are especially valuable in low-shear mud plant operations and during completion fluid manufacture at the well site

Base oil:

Diesel Oils

Mineral Oils

Synthetic Oil

Linear and isomerized Alpha Olefins

Modified vegetable oil

Viscosifying drilling Fluids:

All oil based drilling fluids

Invert emulsion fluids

Workover fluids

Fracture fluids

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.



Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

Storage

CP-160 Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Welcome to inquire about our products: OBM Organophilic Clay.

Ask A Quote
Posted on

Organoclay | Zhejiang Camp-Shinning | rheologicaladditive.com

Organo modified clay rheological additive

Organoclay | Zhejiang Camp-Shinning | rheologicaladditive.com

Organoclay | Zhejiang Camp-Shinning CP-120 is a kind of organo clay rheological additive. Organoclay Rheology modifier is used in systems of medium polarity and high polarity system.

Rheology modifier CP-120 is suitable for Aromatic solvent system and no-solvent inks, sealant and adhesive.

Properties

Composition                      Organic derivative of a montmorillonite clay

Appearance                       Fine powder, light yellow

Moisture content (105℃,2hr)         ≤3.5%

Loss on ignition (1000℃)            34%-37%

Bulk density                       0.35~0.45g/cm3

Fineness (<74μm, %)               ≥95%

 Dispersion fineness (μm)            ≤10

Advantages

High efficiency

Fine particle size and easy dispersing

The gel is of light colour and high clarity

Easy to use, it can be added directly in powder

Consistent development of rheology

Can be used to post correct

Application

Rheology modifier CP-120 is used in the following applications:

Lubricating grease

Paints

Inks

Cosmetics

Cleaning agent

Using

Rheology modifier CP-120 When it is used in grease, suitable polar activators are acetone, 95% ethanole, 95% methanol, dipropyl carbonate. Procedures are suggested as below：

1.Heat the solvent to 60～70℃。

  1. Add CP-EDS (7%-10% in weight of total formulation) under agitation.
  2. Add polar activator (3% of in weight of total formulation) and other additives, mix at high speed for 25-30 minutes.
  3. Pump it to pass through gel grinder or homogenizer.
  4. Air driving, filtering, and packing.

In other application, no need to heat the solvent, but pre-gel procedure is necessary.

Commonly addition level is 0.2%-2%.

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning Co.,Ltd..

Package

Kraft bag or kraft complex interior with PE or customized

Storage

Rheology modifier CP-120 has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made are without guarantee or warranty, since the conditions of use are outside our control. Rheology modifier are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

If you are interesting our organoclay,pls mail us.

[email protected]

Mob: 0086-131 85 071 071

Ask A Quote
Posted on

Argila Organofilica CP-982S For Diesel Oils

Organophilic clay viscosifier for diesel oil

Argila Organofilica CP-982S For Diesel Oils

Argila Organofilica CP-982S is a moderate temperature performance amine-treated Bentonite. Organoclay rheological additive is a cost-effective product, particularly in all-oil, invert diesel and mineral oil based fluids, where sufficient shear is available to achieve full dispersion. Argila Organofilica CP-982S viscosifier is used to increase carrying capacity and suspension properties, providing support for weight materials and improved cutting removal.

Properties

Composition                       Organically modified bentonite clay

Appearance                       Off white to tan free-flowing powder

Moisture content (105℃,2hr)         ≤4%

Particle size (150 mesh)              ≥98%

Specific Gravity                     1.7

Bulk Density, kg/m3                           500

30% Diesel Oil Gel, 600rpm, CP       ≥30

30% Diesel Oil Gel, Yield Point        About 8

Advantages

Effective viscosifier and gellant

Aids control of fluid loss to the formation

Increases emulsion stability

Improves cuttings carrying and hole cleaning capacity

Suspends weighting materials and other solids

Confers temperature stability to the fluid

Application

 Base oil:

Diesel Oils

Crude Oils

Mineral Oils

Synthetic Oil

Viscosifying drilling Fluids:

Oil based drilling fluids

Invert emulsion fluids

Workover fluids

Completion fluids

Casing packs

Packer fluids

Spotting fluids

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.

Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 50LB/Sack or customized

Storage

Argila Organofilica Viscosifiers CP-982S Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. Argila Organofilica are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

If you are interesting our Argila Organofilica,pls mail us.

[email protected]

Mob: 0086-131 85 071 071

Ask A Quote
Posted on

Rheological Additive Manufacturers | Zhejiang Camp-Shinning New Material

Rheology modifiers

Rheological Additive Manufacturers | Zhejiang Camp-Shinning New Material

Rheological Additive Manufacturers produce CP-982S Organophilic Clay is a moderate temperature performance amine-treated Bentonite. It is a cost-effective product, particularly in all-oil, invert diesel and mineral oil based fluids, where sufficient shear is available to achieve full dispersion. CP-982S viscosifier is used to increase carrying capacity and suspension properties, providing support for weight materials and improved cutting removal.

Properties

Composition                                        Organically modified bentonite clay

Appearance                                         Off white to tan free-flowing powder

Moisture content (105℃,2hr)                  ≤4%

Particle size (150 mesh)                         ≥98%

Specific Gravity                                      1.7

Bulk Density, kg/m3                                       500

30% Diesel Oil Gel, 600rpm, CP            ≥30

30% Diesel Oil Gel, Yield Point             About 8

Advantages

Effective viscosifier and gellant

Aids control of fluid loss to the formation

Increases emulsion stability

Improves cuttings carrying and hole cleaning capacity

Suspends weighting materials and other solids

Confers temperature stability to the fluid

Application

Base oil:

Diesel Oils

Crude Oils

Mineral Oils

Synthetic Oil

Viscosifying drilling Fluids:

Oil based drilling fluids

Invert emulsion fluids

Workover fluids

Completion fluids

Casing packs

Packer fluids

Spotting fluids

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co., Ltd.

Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 50LB/Sack or customized

Storage

Rheological Additive Manufacturers produce CP-982S Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. Rheological Additive Manufacturers  All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Ask A Quote
Posted on

 Dispersing Organoclay Rheological additive CP-MPS

Lubricant

Dispersing Organoclay Rheological additive CP-MPS

Dispersing Organoclay Rheological additive CP-MPS is a kind of organo clay rheological additive used in solvent and resin systems covering non polarity to high polarity range.

Properties

Composition                              Organic derivative of a montmorillonite clay

Appearance                                Fine powder, light yellow

Moisture content (105℃,2hr)         ≤3.5%

Loss on ignition (1000℃)            31%-34%

Bulk density                                0.40~0.60g/cm3

Fineness (<74μm, %)                   ≥99%

Dispersion fineness (μm)              ≤10

Advantages

High purity, low silica content

Fine dispersion and particle size

Wide application range

High viscosity and high thixotropy efficiency

Gel is very transparent and of light color

Application

Dispersing Organoclay Rheological additive CP-MPS is used in the following applications:

Paints including top grades paint, decorative paint, industrial paint

Inks

Grease

Cosmetic

Cleaning agent

Using

Super Dispersing Organoclay Rheological additive CP-MPS can be added directly in powder under high shear condition. Addition level is commonly 0.1%~1.0% of total formulation by weight. Polar activator is required to achieve better performance.

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co.,Ltd..

Package

Kraft paper bag with PE liner or multi-wall paper sacks or customized. 25kg/bag or 22.68kg/bag or customized

Storage

Organo bentonite CP-MPS has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made are without guarantee or warranty, since the conditions of use are outside our control.Solvent Borne Organoclay are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Ask A Quote
Posted on

Dispersible Hectorite Clay CP-908

organoclay powder

Dispersible Hectorite Clay CP-908

Dispersible Hectorite Clay CP-908 is an Organoclay Viscosifiers (modified montmorillonite), Dispersible Hectorite Clay designed especially for use in solvent based system including intermediate and low polarity range organic liquid.

Properties

Composition                      Organic derivative of a montmorillonite clay

Appearance                       Fine powder, white

Moisture content (105℃,2hr)         ≤3.5%

Loss on ignition (1000℃)            29%-32%

Bulk density                       0.53g/cm3

Fineness (<74μm, %)               ≥98%

Advantages

Exerts gelling efficiency over a wide range of intermediate and low polarity

Easy dispersing

The gel is colourless and of high clarity

Produce reproducible thixotropic consistency over a wide temperature range

Imparts particle suspension, sag resistance without impairing flow and leveling, preventing hard settling of pigment and fillers

Exerts strong film reinforcing action in organic binder systems

Application

Dispersible Hectorite Clay CP-908 is used in the following applications:

Paints & coatings with solvent of low to medium polarity

Lubricant Grease, ink, sealant

Cosmetic

Oil drilling mud

Using

Dispersible Hectorite Clay CP-908 disperses under high shear and requires a polar activator (30%~40%)  for best efficiency. Heat is not required to obtain good dispersion. Addition levels are typically in 0.2%~2.0%. Polar activator (95% Ethanol or 95% Methanol) is needed. Normally addition level of polar activator is recommended to be 30%~40% of rheology modifier CP-908 in weight.

Safety

All safety information is provided in the Material Safety Data Sheets for Zhejiang Camp-Shinning New Material Co.,Ltd.

Package

Kraft bag or kraft complex interior with PE or customized.

Storage

Organoclay CP-908 has a shelf life of 2 years, and should be stored in ventilated cool and dry place.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made are without guarantee or warranty, since the conditions of use are outside our control. All organoclay are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

If you are interesting our Dispersible Hectorite Clay,Pls mail us

[email protected]

Mob: 0086-131 85 071 071
